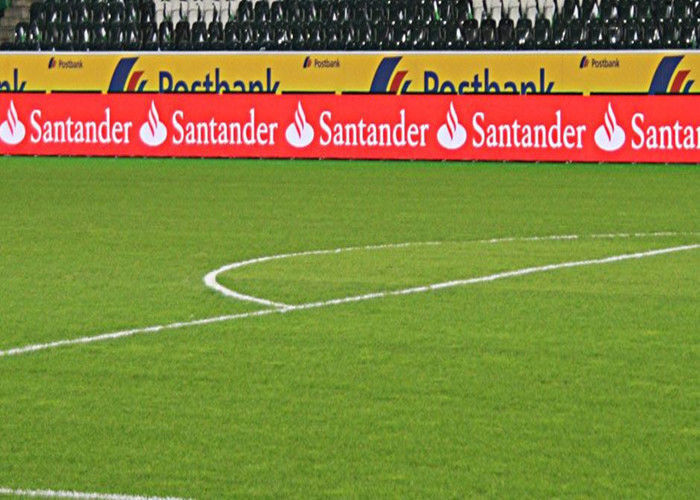

Large Outdoor Sport Perimeter LED Display P20 Mm Digital Advertising Billboard

Large Outdoor Sport Perimeter LED Display P20 Mm Digital Advertising Billboard

  • High Light

    led screen billboard

    ,

    led billboard advertising

  • Tube Chip Color
    Full Color
  • Viewing Distance
    10m -200m
  • Brightness
    ≥ 6500cd/m2
  • Module Size
    320*160mm
  • Pitch size
    20mm
  • LED Standard
    DIP546
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-OBP2001
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

Large Outdoor Sport Perimeter LED Display P20 Mm Digital Advertising Billboard


Large Outdoor Sport Perimeter LED Display P20 Mm Digital Advertising Billboard



 >> Function and Technology characters



 1. Show all kinds of word, text, graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other formats with your PC synchronously.

 2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI, MOV, MPG, etc. We have three display modes as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

 3.10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade

 4. It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.



 >> Specification



No. Specifications
1. Item No. P20 outdoor full color led screen
2. LED chip Taiwan/Silan/Cree/Nichia/opto/epstar
3. Physical Pixel Pitch 20mm
4. Physical Pixel Density 2500dots/m2
5. Pixel composition 2Red, 1Green,1Blue
6. Moduel Size 320*160mm
7. Moduel resolution 16*8dots
8. Cabinet thickness 15-18cm
9. Bracket of cabinet Easy to install and dismantle
10. Brightness ≥ 6500cd/m2
11. Colors 16.7million
12. Viewing angle Horizontal 120°-140°, Vertical 90°
13. Viewing distance 10m -200m
14. Soft Rubber Mask To protect player and LED display itself .
15. Scan frequency

≥600 Hz

There will be one receive card in each cabinet ,so that the LED display won't sparked. Also it is very easy to move and connect

16. Video Frame Rate ≥150 fps
17. Color temperature 6500°K to 9500°K adjustable
18. Control method synchronous control by PC
19. Life span( half brightness) ≥100,000 hours
20. Weight 50-65Kg/sqm
21. IP rate IP65 ( front side and rear side)
22. Average power consumption 400W/sqm
23. Peak power consumption 800W/sqm
24. Input voltage AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
25. Operating Environment Temperature:-25°C~+60°C Humidity:10%-95%RH
26. Operating system Windows 98/2000/ME/XP
27. Type of video signal S-video, composite video ,RGB ,VGA ,DVI



 >> Advantage



 1. Use the flexible soft rubber module mask protect the players and LED display itself.

 2. High brightness, large viewing angle, clear and vivid picture, high contrast degree and good waterproof function.

 3. With the speciality structure support, the cabinet easy to move, also the support structure can be taken off and folded up easily.

 4. The football arena full color LED display is applicable to the advertising screen sports arena such as football, basketball, volleyball, etc.
