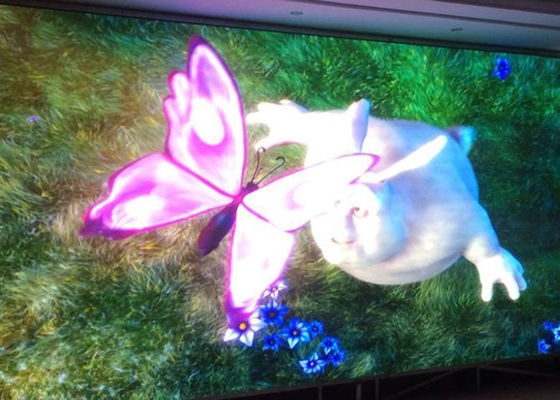

Full Color P10 HD LED Video Wall Lightweight Flexible LED Video Display IP65
>> Description
1: Ultra-thin design with high permeability, reduce the weight of the display screen to the limit.
2: Adapt to each pixel, each module, each box and the entire screen, point by point correction, Prefect white balance.
3: The unique design of the drive circuit, so that the refresh rate easily reach to 3000HZ.
4: Use the outdoor bright LED lamp, the led display can show a wider viewing angle, great color mixing, making the displaying color more vivid.
5: The rugged aluminum housing, durable and light weight.
6: IP66 protection design, support for long-term outdoor use and can be resistant.
7: The cabinet is designed using a new type of scalability hanging style, quick and easy installation and maintenance more convenient.
8. Good heat dissipation.
>> specifications
| Specification | P10 |
| Item 1 ---LED Chip | |
| Brand | Epistar ,Opto , Cree , Nichia |
| Country of Origin | Taiwan. United States. Japan |
| Span life | ≥ 100,000 Hrs |
| Item 2--- Modules | |
| Pixel Pitch | PH 10 |
| LED configuration | SMD 3528(3 IN 1) |
| LED Composition | 1R1G1B |
| Modules size | 240 (L) mm * 320 (H) mm |
| Driving IC | MBI 5024/5041 |
| Driving Method | Constant Current / (1/4 scan) |
| Item 3--- Cabinet | |
| Cabinet size | 480 (L) mm * 960 (H) mm |
| Cabinet Material | wire drawing aluminum cabinet |
| Installation Method | Fix / Hanging / Rental |
|
Cabinet weight |
9 Kg |
| Item 4--- Display screen | |
| Brightness | ≥ 1200cd/M2 |
| Viewing Angle | |
| Refresh Rate | ≥800 Hz |
| Fresh Requency | ≥60Hz |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
| Power Consumption | Max.:450 W/M2 Average:120W/M2 |
| Front and Back protective Grade | |
| Signal Output | HDMI DVI VGA RGBHV PbPr (HDTV) |
| Signal Connection | Video TB SDI |
| Controlling System | Linsn/ Colorlight / Nova/ DB Start … |
| Operating System | Windows98/me/2000/NT/XP Window7 ,Vistar |
>> Competitive Advantage
1. The display can be suspended or vertically mounted as different demands from leasing or purchasing users. Convenient design on the connection structure, two cabinets can be connected easily in 10 second without any tools.
2. The green light and red light on the back of the cabinet makes it easier to detect the problem on signal and power source, save a lot of trouble for you on maintenance.
3. Nature heat dissipation without using any specific equipment, allow the working of the screen more quiet.
4. Super-slim cabinet design, aluminum alloy cabinet makes the screen extremely lightweight, perfect for stage decoration usage.
5. The flatness of the display is greatly improved by its high-precision processing technology, one card for one cabinet design, highly improve the refresh rate.
Our products are sold all over the world, you can rest assured.
