Multi Functional LED Stage Curtain Screen Flexible LED Curtain Display 3840 Hz

Multi Functional LED Stage Curtain Screen Flexible LED Curtain Display 3840 Hz

  • High Light

    stage background led screen

    ,

    stage background led display

  • Cabinet Size
    500*500mm
  • Viewing Distance
    4-100m
  • Pixels
    4mm
  • Cabinet Wegiht
    8kg/pc
  • Module size
    256*128mm
  • Brightness
    ≥1000nits
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-ISRP4000
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

Multi Functional LED Stage Curtain Screen Flexible LED Curtain Display 3840 Hz


Multi Functional LED Stage Curtain Screen Flexible LED Curtain Display 3840 Hz



 >> Advantages



 1. High contrast ,High refresh rate and High brightness.



 2. High reliability: using distributed scanning technology and module design technology that make

higher reliability and stability.



 3. Steady and reliable system, with strong anti-interference ability and long service life that can

continually work for over 24 hours,and it’s easy to operate the system.



 4. Favorable effect: using dot to dot calibration technology makes the image clearer and the

layering stronger.



 5. LED display stage p4 makes convenient installation and maintenance of display modules.



 6. Utra thin and super light cabinet,fast lock and installation



 7. Using MBI5124IC with high regresh rate >1920HZ



 >> Specification



Item parameters
Pixel Pitch 4mm
Pixel Density 62500dos/sqm
LED Package SMD2121
Module Size 256*128mm
Module Resolution 64*32dot
Cabinet Size 512*512mm
Cabinet Resolution 128*128dot
Cabinet Materials Die Casting Aluminum
Cabinet Wegiht 8kg/pc
Brightness ≥1000nits
Driving Mode 1/16scan
Refresh Rate ≥3840hz
Grey Level 256levels
Viewing Angle 140°/140°
Viewing Distance 4-100m
Working Temperature -20℃ - +60℃
Life Span >100,000 Hours
Operating Humidity 10% - 95%
Certificate CE,ROHS,FCC,ETL
Input Source All Format (AVI, MPEG,VOB, RM, etc)



 >> Application

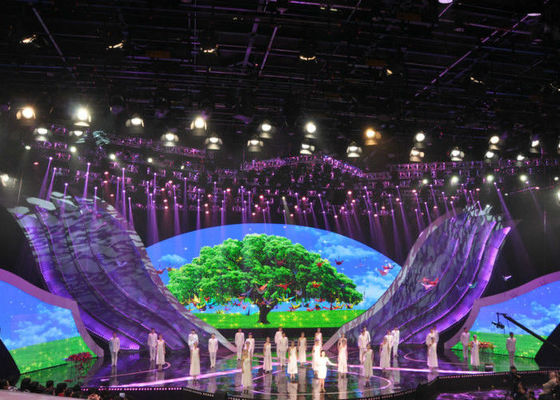

 P4 indoor led display stage screen are mainly used in shopping malls, hospitals, banks, enterprises and institutions, exhibition hall, sports venues, ticketing hall, hotels, securities companies, shopping malls, businesses, schools, arena, bank , securities, public security, transport, industry and commerce, electricity, customs, hospitals, parks, airports, railway stations, security, television and other fields.



 >> FAQ


 1. What kind of display we provide?
 We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.

 2. How about the warranty ?
 We have one years quality guaranteed, spare parts such as led module, receive card, control card, power supply is damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement.

 3. How about the quality ?
 Our led products must be testing of at least 48hours before shipping,we has strictly quality control systems to ensure led display with good quality.

 4. Can you offer a technical support ? Since it's my first time....
 We provide free training for our customer, teach client how to set up screens, make configuration of parameters, broadcast the videos through Nova star or Linsn control systems, configure of video processor.
