RGB HD Stage Background LED Display Big Screen P3 LED Panel Rental 192mm X 192mm

RGB HD Stage Background LED Display Big Screen P3 LED Panel Rental 192mm X 192mm

  • High Light

    stage background led screen

    ,

    stage background led display

  • Cabinet Size
    500*500mm
  • Viewing Distance
    2.5-100m
  • Pixels
    3mm
  • Cabinet Wegiht
    8kg/pc
  • Module size
    192*192mm
  • Brightness
    ≥1000nits
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-ISRP3000
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

RGB HD Stage Background LED Display Big Screen P3 LED Panel Rental 192mm X 192mm


RGB HD Stage Background LED Display Big Screen P3 LED Panel Rental 192mm X 192mm



 >> Advantages



 1. High contrast ,High refresh rate and High brightness.



 2. High reliability: using distributed scanning technology and module design technology that make

higher reliability and stability.



 3. Steady and reliable system, with strong anti-interference ability and long service life that can

continually work for over 24 hours,and it’s easy to operate the system.



 4. Favorable effect: using dot to dot calibration technology makes the image clearer and the

layering stronger.



 5. LED stage backdrop convenient installation and maintenance of display modules.



 6. Utra thin and super light cabinet,fast lock and installation



 7. Using MBI5124IC with high regresh rate >1920HZ



 >> Specification



Item parameters
Pixel Pitch 3mm
Pixel Density 111,111dos/sqm
LED Package SMD2121
Module Size 192*192mm
Module Resolution 64*64dot
Cabinet Size 576*576mm
cabinet Resolution 192*192dot
Cabinet Materials Die Casting Aluminum
Cabinet Wegiht 8kg/pc
Brightness ≥1000nits
Driving Mode 1/32scan
Refresh Rate ≥1920hz
Grey Level 256levels
Viewing Angle 140°/140°
Viewing Distance 2.5-100m
Working Temperature -20℃ - +60℃
Life Span >100,000 Hours
Operating Humidity 10% - 95%
Certificate CE,ROHS,FCC,ETL
Input Source All Format (AVI, MPEG,VOB, RM, etc)



 >> Application

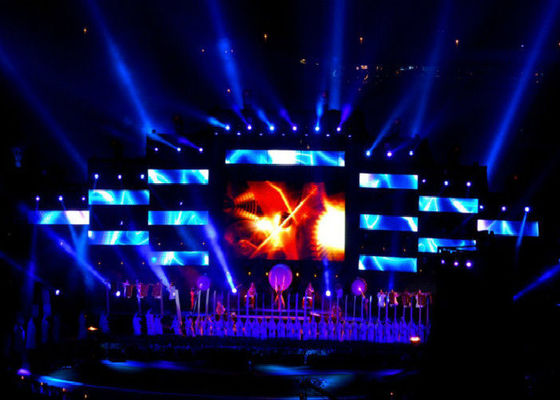

 P3 indoor led stage backdrop screen are mainly used in shopping malls, hospitals, banks, enterprises and institutions, exhibition hall, sports venues, ticketing hall, hotels, securities companies, shopping malls, businesses, schools, arena, bank , securities, public security, transport, industry and commerce, electricity, customs, hospitals, parks, airports, railway stations, security, television and other fields.



 >> After Sales Service



 1. 1 years warranty.

 2. Free factory training.

 3. 24/7H online support.

 4. Lifetime free repair and technical support.
