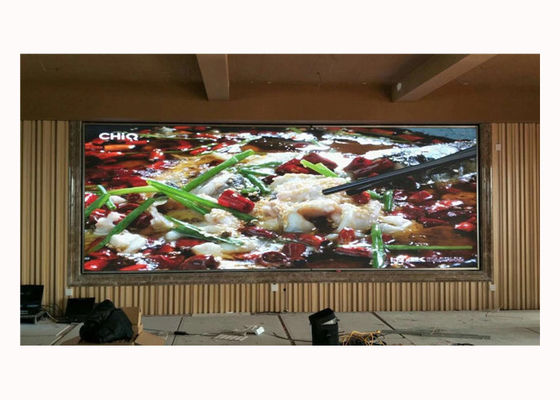

2.5mm Pixel Pitch High Definition LED Screen , Front Maintenance LED Display

2.5mm Pixel Pitch High Definition LED Screen , Front Maintenance LED Display

  • High Light

    hd led screen

    ,

    high definition led display

  • Module Size
    240*240mm
  • Brightness
    >900nits
  • Tube Chip Color
    Full Color
  • LED Composition
    1R1G1B
  • Pixels
    2.5mm
  • Cabinet Wegiht
    7kg/pc
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-HDP2502
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

2.5mm Pixel Pitch High Definition LED Screen , Front Maintenance LED Display



2.5mm Pixel Pitch High Definition LED Screen , Front Maintenance LED Display



 >> Specification


 1. The whole screen can be seamless Mosaic,flatness,there will be no gap

 2. High frequency refreshes,each color 625,000 grayscale modulation,making the image more delicate,about the point-by-point correction technology system,easy to operate.

 3. Control power supply constant power chip,double capacitance high power.stable heat dissipation,long life,more urable.

 4. Use national standard all copper power supply wire,anti-oxidation.anti-aging,waterproof,flame retardant,can be used for a long time without damage .

 5. Using 6-pin copper bracket lamp beads,the current uniform brightness.long useful life,beautiful color without shad.

 6. Use angle extension technology to ensure the image is not distorted and the color is not distorted.


Item Parameters
Pixel Pitch PH 2.5mm
Pixel Density 160,000dos/sqm
LED Package Black SMD2121
Module Size 240*240mm
Module Resolution 80*80dot
Cabinet Size 480*480mm
Cabinet Resolution 192*192dot
Cabinet Materials Die casting aluminum
Cabinet Wegiht 7kg/pc
Brightness >900nits
Refresh Rate >1920hz
Viewing Angle 140°/140°
Max Power Consumption 650W/sqm
Ave. Power Consumptio 205W/sqm
Life Span >100,000 Hours
Operating Humidity 10% - 95%
Certificate CE,ROHS,FCC,ACMA
Input Source HDMI,SDI,DVI,AVI, MPEG,VOB, RM, etc)



>> Our advantage



 1. Rich experience: Management, engineers and marketing team in LED display industry around 8-10 years; familiar with technical and material about LED display and LED light.



 2. Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.



 3. Powerful R&D ability: excellent engineers are constantly developing new products and improving them.



 4. Good quality: stable performance .



 5. Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.



 6. We guarantee all our LED products for 1 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime, and we will inspect our products which have been sold periodically.


 >> FAQ

 1: What is the warranty of your led display?
 A: We offer 1 years warranty.and more than 100000 hours screen life span

 2: How can you ensure the led display product quality?
 A: Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.

 3: What is your pre-sale and post-sale service?
 A: For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.



 >> Support & Service



 DDW company has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.


 Pre-sale service:
 1. Reply enquiries in 24 hours.
 2. Market research and forecast for customer.
 3. Provide unique and professional solutions based on customer's requirement.
 4. Data sheet and samples offer.
 5. Other services, such as special packing design, factory visiting and so on.

 After-sale service:
 1. Lifetime free maintenance and upgrade.
 2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
 3. Customer satisfaction tracking report.
 4. Free technician training.
