1500nits P5mm SMD3528 Indoor Fixed LED Screen Aluminum

1500nits P5mm SMD3528 Indoor Fixed LED Screen Aluminum

  • High Light

    SMD3528 Indoor Fixed LED Screen

    ,

    1500nits Indoor Fixed LED Screen

    ,

    P5mm Fixed LED Video Wall

  • Pixel Pitch
    5mm
  • Viewding Distance
    >5m
  • Leds
    SMDSMD3528
  • Brightness
    >1500nits
  • Lifetime
    100000 Hours
  • Warranty
    2 Years
  • Place of Origin
    China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    P4mm
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

1500nits P5mm SMD3528 Indoor Fixed LED Screen Aluminum

P5mm SMD3528 Led Indoor Display High Brightness Fixed Installations LED Screen Wall



5.0mm pixel pitch, 1,800 nits+ brightness, indoor fixed applications



DDW high brightness P5mm SMD3528 Indoor LED Display comes at 5mm pixel pitch with the best viewing distance from 5m to 100m and viewing angle is larger than 140° in horizontal and vertical, which offers more than 1,800nits brightness and 4000:1 contrast ratio. The P5mm SMD3528 Indoor LED Display is designed for indoor fixed installations by using high brightness and energy saving SMD3528 LEd lamps, which offers great image quality and reliable operation cycle and longer lifetime.

The module sizes of P5mm SMD3528 Indoor LED Display is 160mm*160mm or 320mm*160mm, customers can choose any one of them according to the real need for their LED display video wall project, and the LED cabinet material can be steel or aluminium for indoor fixed installation.

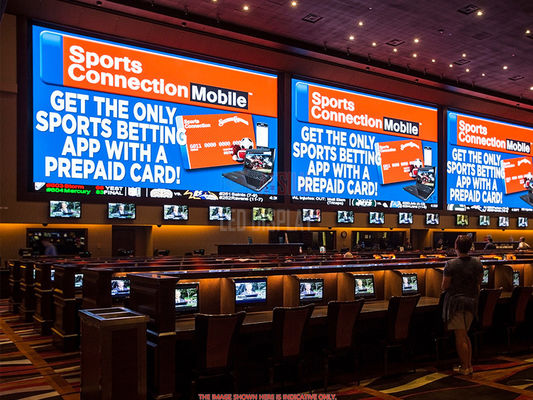

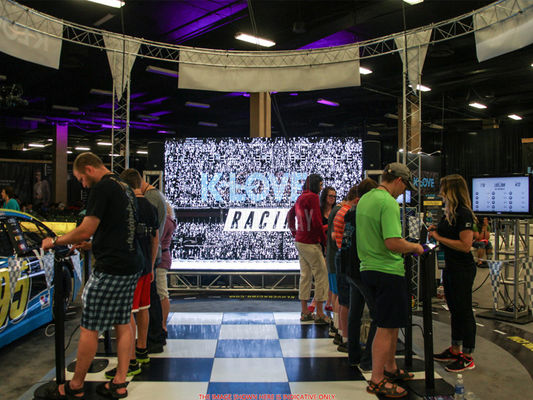

Our P5mm SMD3528 Indoor LED Display is widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.

Technical Specification

P4mm Soft Indoor LED Display
Pixel Pitch 4mm (0.1575")
LED Brand Nationstar*
Pixel Configuration 1R1G1B
Pixel Density 62,500 Pixels/m²
LED Module Size: 240mmx120mm (9.45"x4.7244")
Resolution: 60*20 Pixels
LED Cabinet Size: Customized
Resolution: * pixels
Material: Aluminum
Weight: <6Kg (13.2 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 380W/m² / Max 850W/m²
Maximum Brightness >800 cd/m²
Refresh Frequency >3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/16 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 4m~>100m (12ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level IP43
Ambient Temperature -40°C ~ 60°C (-30°F ~ 150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 2 Years (3 Years for Cree and Nichia)
  • indoor fixed screen series
  • SMD3528 LED lamps
  • MBI5153 or CH2153 driving ICs
  • 2 Layers 1.6mm Thickness PCB
  • 320mmx160mm Size LED module
  • 640mmx480mm Size LED cabinet
  • Rugged and lightweight support easy and quick seamless assembling
  • 5m~100m better viewing distance (max. viewing according to the video wall size)
  • 140° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment
