Seamless 1000nits SMD3528 Outdoor LED Billboard P8

Seamless 1000nits SMD3528 Outdoor LED Billboard P8

  • High Light

    SMD3528 Outdoor LED Billboard

    ,

    1000nits Outdoor LED Billboard

    ,

    P8 SMD Stadium LED Screen

  • Tube Chip Color
    Full Color
  • Pixel LED
    SMD3528
  • Unit Box Size(mm)
    1024(L)* 768(H)* 180
  • Module Size
    256 * 128 * 20
  • Pitch size
    8mm
  • LED Standard
    DIP546
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-OBP8000
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

Seamless 1000nits SMD3528 Outdoor LED Billboard P8



Seamless Splicing Outdoor LED Billboard Full Color P8 SMD Stadium Big Screen

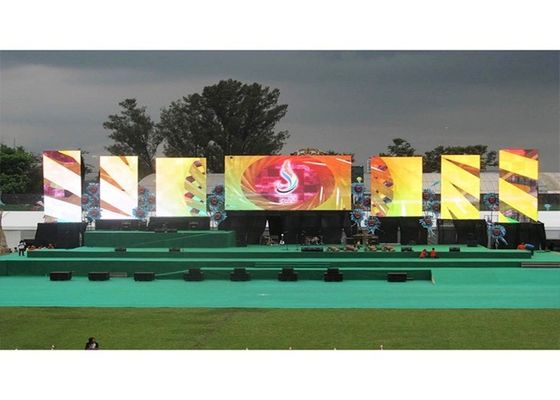

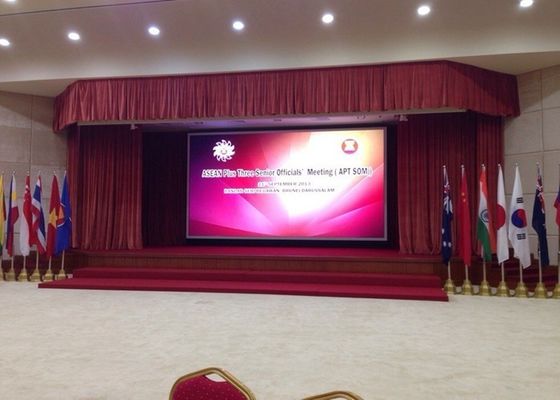

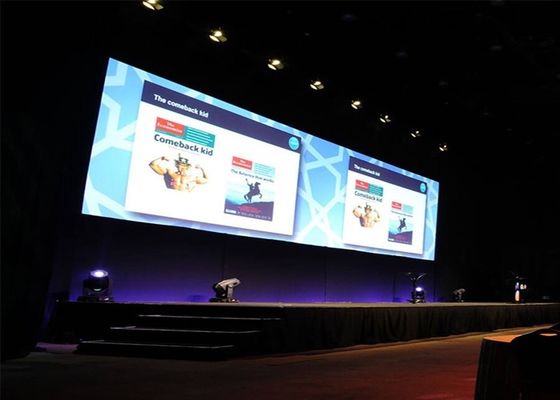

 Our Advertising LED Display are designed with features of thin, lightweight, flexible; Simple and durable structure,500*1000*68 mm cabinet, 13 kg/panel, could be fast to install and dismantle by one man in a short time without gap. Mostly used in creating large-area backstage, such as Stage, TV Show, Nightclub, etc. The screens and image revealed are true and beauty, creating a dream effect. An series are the best choice of creative designing company.



 1. Pixel
 Pixel LED: SMD 3528
 Pixel Configuration: 1R, 1G, 1B
 Wave length(nm): R: 626-628, G: 518-520, B: 466-468
 Pixels Pitch(mm): 8

 2. Module
 Module Size(mm): 256 * 128 * 20
 Module Pixels (DOT): 32 * 16

 3. Unit box
 Module quantities(PCS/box): 4 (L) * 6(H)
 Unit box size(mm): 1024(L)* 768(H)* 180
 Unit box Pixels(DOT): 128 * 96
 Unit box material: Aluminum or Iron
 Weight (kg/box): Aluminum: 35 or Iron: 42

 4. Packaging
 Packing Way: Two unit boxes packed into one
 Packing box material: Wooden case or Flight box
 Packing box size (mm): 1150 * 950 * 480

 5. Electricity parameter

 Pixel density(dots/m2): 15625

 White Balance Brightness(CD/m2): ≥1000

 Color temperature(K): 5000_9500 (choice by user)

 Brightness Adjusted: 100 grade by software, or by Auto-optic induced.

 View Angel: Horizontal 160; Vertical 140

 Best viewing distance(m): 2-80

 Communication distance (m): Internet Wire: 120 Fiber Cable: 1000

 Screen work Method: Scan: 1/4

 LED driving method: Constant driving current

 Gray Grades: 16384 levels for each color

 Switch power supply: Switch power supply (include CE/GS or UL/CSA certificate) 110V/60Hz, 220V/50Hz

 Power Consumption (w/m2 ): Max: 800, Average: ≥500



 >> Advantage



 (1) High brightness reach to 8000CD.

 (2) High Refresh Rate reach to 5000Hz or more

 (3) Long lifespan and stable quality

 (4) Aluminum Material

 (5) Working under the temperature -30C to +75C

 (6) Save 35% power than normal screens
