8mm Pixel 5000nits Outdoor Led Video Display For Shopping Mall

8mm Pixel 5000nits Outdoor Led Video Display For Shopping Mall

  • High Light

    5000nits Outdoor Led Video Display

    ,

    8mm Pixel Outdoor Led Video Display

    ,

    IP65 Shopping Mall LED Display

  •  Pixel Pitch
    8mm
  • Brightness
    5000nits
  • Weight
    36kg
  • Working Temperature
    - 20°C To 50°C
  •  Pixel Matrix Per Cabinet
    128 X 96
  • Protection
    IP65
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-OFCP8003
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

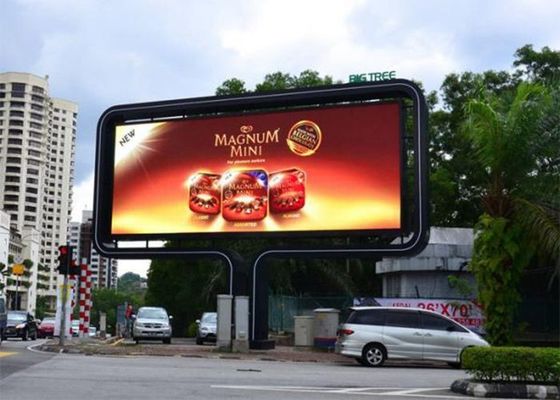

8mm Pixel 5000nits Outdoor Led Video Display For Shopping Mall

Professional Outdoor Full Color LED Display 8mm Pixel Pitch For Shopping Mall



 Truck display can be installed in different climate areas all over the world. Low temperature as -20 degree and high temperature as +60 degree, high humidity and high salty air environment such as seaside, our cabinet is oisture-proof and salt-proof.



 High brightness DIP LED is widely use for mobile truck led display with weatherproof design, so can be used outdoor with cute weather. Meanwhile, vivid color performance and high conformity would bring an excellent display effect for the event.
 · Pixel Configuration: SMD 1R1G1B
 · Pixel Pitch: 8mm
 · Module Resolution: 32 × 16 pixel dots
 · Module size: 256mm x 128mm
 · Cabinet Size: 1024 x 768 x 185 (mm)
 · Cabinet Weight: 39kg


 >> Features
 · Louvered-face and mask-face panels are avaiable.
 · The whole sign is separated into pieces for transportation.
 · Modular Design allows the sign to be built in various size.
 · LED module is sealed twice for good weather resistance.
 · Forced air ventilation and natural heat-dissipation system.
 · Easy access from double-layer weather-resistant rear doors.



Parameter Unit Value
Brightness nits 5000
Color temperature deg.k 6500
Viewing angle - Horizontal deg. 140(+70/-70)
Viewing angle - Vertical deg. 140(+70/-70)
Cabinet Weight kg 36
Cabinet Width mm 1024
Cabinet height mm 768
Cabinet depth mm 185
Cabinet area sq. m. 0.79
Cabinet material   Aluminium
Aspect ratio   4 : 3
Ingress Protection (Front/Rear) IP IP65/IP43
Operating temperature range deg. C -20 to 50
Operating Humidity range HR 10% to 90%
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 8
Pixel matrix per cabinet   128 x 96
Pixels per cabinet   12288
Lines per meter   125
Pixels per sq. meter   15625
LEDs per sq. meter   15625
Recommended minimum viewing distance m 8
Colours   281 trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz ≥2000
Scan mode   1/4 duty scan drive
Input voltage VAC 110 / 240
Input power frequency Hertz 50 or 60
Input power (max/avg) Watts per sq.m 600/250



 >> Advantages



 1: Aluminum cabinet made by CNC has more accurate tolerance on structure than that made by metalplate processing, which ensures the flatness of the entire LED screen.



 2: Cabinet size of 500*500*63mm and light weight of only 8 kg enable one-person installation easier and simpler, save installation time. But traditional LED screen is over 25 Kg with the same size.



 3: Adopting the CNC aluminum processing, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 63mm, the traditonal cabinet is 160mm.



 4: Adopting quick locking mechanism on the Up, down, left and right connection. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.



 5: Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance.
