Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ISRP1250
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Usage: |
Indoor |
Tube Chip Color: |
Full Color |
Pixels: |
12.5mm |
Brightness: |
>1200nit |
Module size: |
200mmx200mm |
View angle: |
140°/140° |
Usage: |
Indoor |
Tube Chip Color: |
Full Color |
Pixels: |
12.5mm |
Brightness: |
>1200nit |
Module size: |
200mmx200mm |
View angle: |
140°/140° |

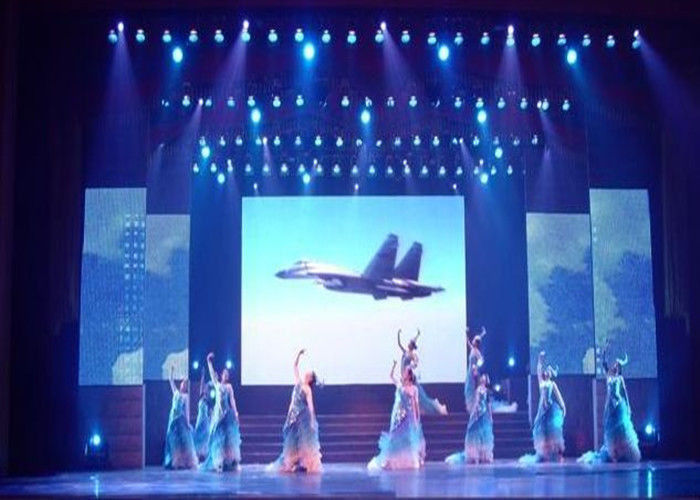

High Brightness LED Stage Screen P12.5 Full Color For Disco Club Decoration
>> Characteristics
1. Wide viewing angle (greater than 140 °in horizontal).
2. Ultra high brightness (can 12000 Nit, suggest 7000nits normally) with low power consumption (300W/M2).
3. High refresh rate (greater than 3840 Hz, suggest 2900Hz for Linsn) with software adjustable, suitable for filming.
4. High grayscale (15 bits) with perfect visual performance.
5. High Contras ratio (2000:1) with black mask and black coating technique.
6. Special design can make our LED panel both front and rear side maintainance accessible. This will greatly cut down
7. The led display can be used for live concert, exhibitions, activities, theme parks, Football match, outdoor live broadcasting.
| Item | Parameter | Item | Parameter |
| Pixel pitch | 12.5mm | LED encapsulation | SMD 3528 |
| Pixel configuration | 1R1G1B | View angle | 140°/140° |
| Pixel density | 6400dots/m2 | Driving method | 1/4 scan, constant current |
| Module resolution | 16dots×16dots | Module size | 200mmx200mm |
| Cabinet resolution | 32dotsx64dots | Cabinet size | 400mmx800mm |
| Working temperature | -20°C-+60°C | Max power consumption | 350w/m2 |
| MTBF | >10.000hrs | Average power consum | 150w/m2 |
| Humidity | 10%-90% | Brightness | >1200nit |
| Refresh rates | ≥1200Hz | Life span | >100,000hrs |
| Best viewing distance | >8m | Gray level | RGB/8192/14bit |
| Working voltage | AC 110V or 220V | Display function | Graphics, Animation, video |
>> Advantage
1) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal
2) High contrast ,High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.
3) The brightness can be adjustable to meet the need of changing requirement of customer in environment
4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
>>Description
1. Resist of the high temperature and antioxidation and anti-statiic;
2. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.
3. Long using life & MTBF
4. P6 LED screen waterproof IP68.
