Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ISRP6000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Usage: |
Indoor |
Tube Chip Color: |
Full Color |
Pixels: |
4mm |
Brightness: |
>2000 CD/m² |
Module size: |
192×192 Mm 192×96 Mm |
Refresh Rates: |
> 800Hz |
Usage: |
Indoor |
Tube Chip Color: |
Full Color |
Pixels: |
4mm |
Brightness: |
>2000 CD/m² |
Module size: |
192×192 Mm 192×96 Mm |
Refresh Rates: |
> 800Hz |

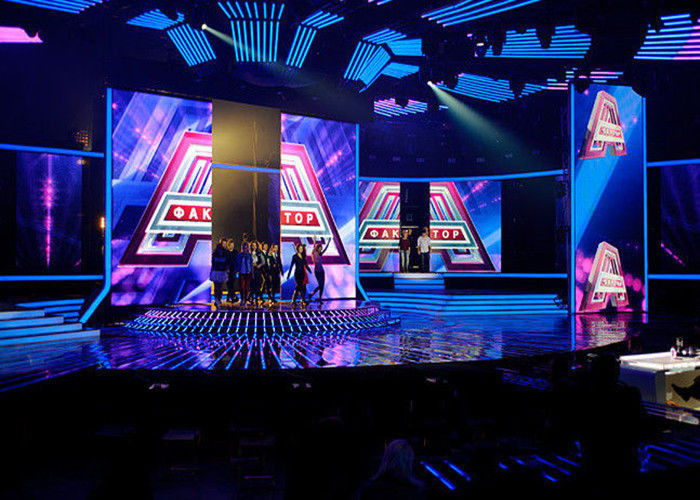

P6 Background LED Wall Indoor Full Color LED Screen Rental Die Casting Aluminum
Our stage LED screen use high-quality LED, have high efficiency luminescence, decreased attenuation of brightness, high stability and reliability. Use advanced processing technology, guarantee for high-qulity and long-lifetime products.
The bright difference of any two pixels is less than 2%,it assures our LED display’s
uniformity in color and brightness, in avoid “splash”,”glare” “mosaic” and blur.Low-budget,
high pixel density, more vivid and stable pictures(No Flickering).Can be normally used under the
temperature between -25°C and +75°C.With production capacity of 5,000 m2 per month,
can guarance for production cycle and delivery cycle.
>> Specification
| Pixel pitch | 6mm | LED encapsulation | SMD3528 |
| Module resolution | 32×32 dots 32×16 dots |
View angle | 140°/140° |
| Module size | 192×192 mm 192×96 mm |
Working environment temp |
Temp: -20°C to +60°C Humidity: 35%~85% |
| Pixel density | 27,777 dots/m² | Working voltage | 110 V±15% or 230 V±15% |
| Pixel configuration | 1R1G1B | Driving method | 1/8 scan, constant current |
| Optimun Viewing distance |
>5 m | Gray level | RGB/8192/14bit |
| Max power consumption |
850 W/m² | Display function | Graphics,Animation, and video |
| Brightness | >2000 CD/m² | Refresh rates | > 800Hz |
| Life span | >100,000 hours | Blind spot rate | < 0.00001 |
>> Features
1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:140 inhorizonal and 140 in vertical
3. special design and advanced SMT technology improves the heat dissipation
4. with high fresh rate controller, guarantee that no scan line when taking photos
5. regular shape and special shape(such as curve,round) can be designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid audio visual effect
8. both front access and rear access areavailable
>>Ask
1.What is the data connection between panels?
Each panel has 1 input and 1 output making connection between panels very simple.
2.Does the sending unit have a scaler?
We offer a variety of solutions, some have scalers built in, others do not. Most scaling is done with outside software or controllers.
