Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFCP2001
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Usage: |
Outdoor |
Tube Chip Color: |
Full Color |
Display Function: |
Video |
Pixels: |
20mm |
Brightness: |
6000 To 8000cd/sqm |
Protection Level: |
IP65 |
Usage: |
Outdoor |
Tube Chip Color: |
Full Color |
Display Function: |
Video |
Pixels: |
20mm |
Brightness: |
6000 To 8000cd/sqm |
Protection Level: |
IP65 |

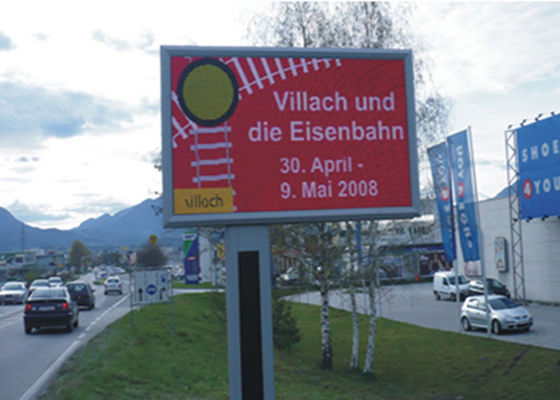

Super Bright Outdoor Full Color LED Display DIP346 P20 With Static Scan Easy Install
outdoor DIP series offers 24/7 reliability at a low cost of ownership. With less power consumption and a lighter weight than similar products, Visual Lumen's outdoor RGB LED displays are a perfect fit for digital signage and sports applications.
The outdoor SMD features environmentally friendly technologies that reduce light pollution, such as contrast enhancing shaders that allow for lower brightness and lower power consumption as well as a higher visual performance and a downward angle on its LEDs.
This ensures that light is well targeted at your audience and that less excess light is spilled, which leads to a lower power consumption and longer lifetime.
>> Function introduction of p20 high brightness outdoor led display
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Ip65 protection grade, durable nature to enable the OA LED screen working in all weather outdoor environments;
| MODULES | Pixel Pitch(MM) | 20 |
| Physical Density(dot/M2) | 2,500 | |
| LED Arrangment | 1R1G1B | |
| LED Type | DIP346 | |
| Module Size(MM*MM) | 320*320 | |
| Module Resolution(PX*PX) | 16*16 | |
| Module Power Comsumption(W) | 75 | |
| main technical parameters | Drive Mode | Constant Current Drive |
| Horizontal Viewing Angle(Deg) | 120 | |
| Vertical Viewing Angle(Deg) | 50 | |
| Brightness(CD/M2) | 6500 | |
| Grey Scale | >8192 | |
| Refresh Rate(HZ) | >800 | |
| Cabinet Resolution | 64*48 | |
| Cabinet Max Power Consumption(W) | 1000 | |
| Cabinet Average Power Consumption(W) | 400 | |
| Cabinet Size(MM*MM) | 1280*960 | |
| Cabinet Weight(KG) | 65 | |
| Cabinet Thickness(MM) | 150 | |
| Cabinet Material | Steel/Aluminum | |
| Color(M) | >16.7 | |
| Input Voltage | AC 110V~220V+/-10% | |
| Refresh Frame Frequency(Hz) | 60 | |
| Protection Level | IP65 | |
| Working Environment | outdoor | |
| Working Temperature(Celsius degree) | -20~+40 | |
| Storage Temperature(RH) | 10%-90% | |
| Life Span(H) | 100,000 |
>>Advantages of p20 high brightness outdoor led display
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
