High Brightness P16 Outdoor Full Color LED Display Screen For Advertising Rental
Product Details:
| Place of Origin: | Shenzhen ,China |
| Brand Name: | DDW |
| Certification: | CE/ROHS/FCC/UL/ISO/3C |
| Model Number: | DDW-OFCP1611 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood or Flight Case |
| Delivery Time: | 7-20 days |
| Payment Terms: | Bank T/T transfer, Western Union |
| Supply Ability: | 6000sqm/month |
|
Detail Information |
|||
| Pixel Pitch(mm): | 16mm | Density: | 3,906dots/m2 |
|---|---|---|---|
| Weight: | 50kg | Module Size(mm): | 256mm * 128mm |
| Usage: | Outdoor | IP Standard : | IP65 |
| Highlight: | outdoor advertising led display,outdoor fixed led display |
||
Product Description
High Brightness P16 Outdoor Full Color LED Display Screen For Advertising Rental
>> Application of outdoor led display

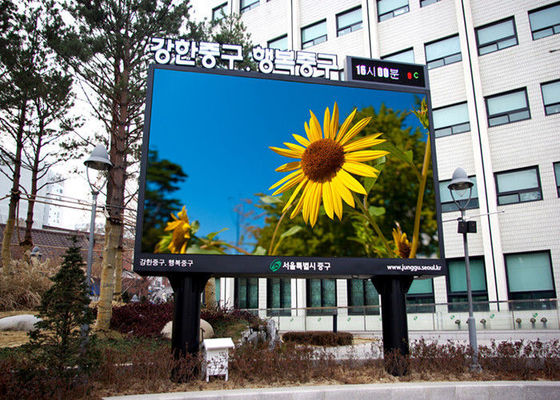

The P16 series outdoor led display is specially designed for outdoor high-definition display. Apply to government plaza, leisure square, large entertainment plaza, bustling commercial center, station and so on
>> Module parameters of p16 outdoor led display
| Pixel Pitch | 16mm |
| Pixel composing | 1R1G1B/2R1G1B |
| Density | 3,906dots/m2 |
| module resolution | 16 dots* 8 dots |
| Module size | 256mm * 128mm |
| Pixel | 16mm | Short circuit protection | Yes |
| Standard cabinet size | 1024mm*1024mm or design | Refresh | 400 Hz |
| Weight per sqm | 50Kg/sqm | Changing frame frequency | 60 Hz |
| Whiteness brightness | 6500 cd/sqm | Driving method | Constant driving ,1/1scan |
| Led package | DIP | Working Environment | Outdoor |
| Wave Angle (H) | 110°(H)/40°(V) | Working temperature | -30~60°C |
| Best view distance | ≥16m | Working Humidity | -10~90% |
| Working voltage | AC 220v/380v±10%50~60Hz | Out of control | 1/10,000 ( scattered) |
| Power consumption/ m2 | 405W/sqm | lifetime | 100,000 hours |
>> Advantages of outdoor led display
Remote Control
Broadcast And TV Function
High brightness output
High Quality Leds
Powerful Driving Device
Image Quality
More color expressive force
Professional Production Software
Want to Know more details about this product
