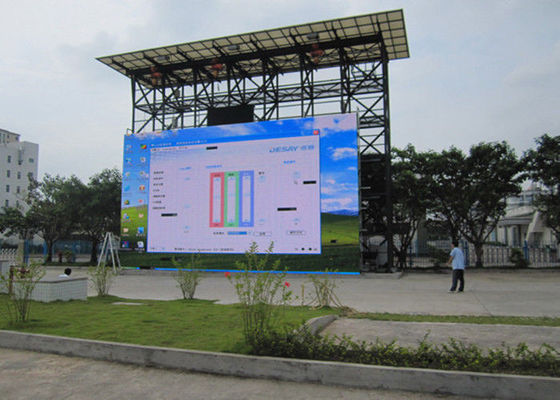

Commercial Advertising LED Display Full Color Outdoor Big Screen P10 P16 P20 P25
Our General Module which will make the display very smooth and minimum gap between modules endow your LED display with an high-end products.
1. Special design which can make our LED panel both front and rear side maintainance accessible. This will greatly cut down the maintain cost.
2. High refresh rate (greater than 4,000 Hz) with software adjustable, suitable for filming.
3. High grayscale (15 bits) with perfect visual performance.
4. High Contras ratio (2000:1) with black mask and black coating technique.
5. Wide viewing angle (greater than 140 °in horizontal).
6. IP65 protection rating.
7. Fast and easy to assemble and dismantle.
8. High reliability and long lifespan (MTBF ≥ 10,000 hours).
>>Outdoor led display Features
1) With good lightening accordance and no mosaic
2) Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
| No. | ITEM | P10 | P16 | P20 | P25 |
| 1 | Pitch | 10mm | 16mm | 20mm | 25mm |
| 2 | Pixel density | 10000pixels/ | 3906pixels/ | 2500pixels/ | 1600pixels/ |
| 3 | Module size | 1280mm*960mm | 1024mm*1024mm | 1280mm*1280mm | 800mm*800mm |
| 4 | Panel pixel | 128*96 | 64*64 | 64*64 | 32*32 |
| 5 | Power consumption | 100W1500W/ | 100W1200W/ | 100W800W/ | 100W500W/ |
| 6 | View distance | 8--150m | 10--200m | 15--200m | 25--200m |
| 7 | Pixel configuration | 1R 1G 1B | 2R 1G 1B | 2R 1G 1B | 2R 1G 1B |
| 8 | Brightness | ≥6500cd/ m2 | |||
| 9 | Screen weight |
<65kg/m2(not including external frame) |
|||
| 10 | Grey scale | 65536degree | |||
| 11 | Display mode | VGA640X480VGA1600X1024 | |||
| 12 | Life time | ≥100,000 | |||
| 13 | Control distance | 120 m (no repeating); Optical fiber transmission: 500m- 20km | |||
| 14 | Operating temperature | 25+60 | |||
| 15 | Operating humidity | 10%95%RH | |||
| 16 | Control mode | Synchronized with computer monitor | |||
| 17 | Drive mode | constant current driving,static scan | |||
| 18 | Accepting signal | PAL/NTSC/SECAMS-VideoVGARGBComposite VideoSDI | |||
| 19 | Systems operating platforms | Windows98/Me/2000/Xp | |||
| 20 | Brightness adjustment | 64 level automatic or manual | |||
1. High brightness
High brightness with 7500-10000cd/m2 ,even against the strong sunshine,it is still provide the the excellent visual effects.
2. Waterproof
The row materials is waterproof,and also with the cabinet IP 65,it is can totally prevent from storm,snow,etc.
3. Wide range of application
The P10 can widely used in street advertising,station,shopping mall ,stadium,plaza,it is your best choice for advertising campaign.
4. Cost-effective
We are pro LED display manufacturer,we absolutely provide our clients the high quality with competitive price.
Our products are sold all over the world, you can rest assured.
