Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-IFCP1600
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Protection Leve: |
IP65 |
Cabinet Resolution: |
256mm X128mm |
Pixel Density: |
3906Dots/m2 |
Pixel Pitch: |
16mm |
Pixel Type And Configuration: |
1R1G1B |
Tube Chip Color: |
Full Color |
Protection Leve: |
IP65 |
Cabinet Resolution: |
256mm X128mm |
Pixel Density: |
3906Dots/m2 |
Pixel Pitch: |
16mm |
Pixel Type And Configuration: |
1R1G1B |

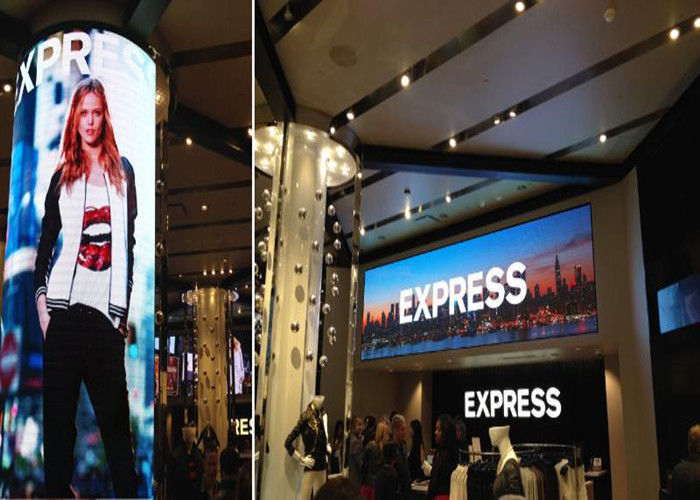

Fashion Show Indoor Led Display Board Full Color With Width Viewing Angle
>> Application
1. Light weight and small size: each cabinet size only 640mm*640mm*97mm, weight 13kg, frame 55mm.
2. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
3. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
4. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
5. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.
6. Both indoor and outdoor series are compatible, outdoor SMD and DIP screen with IP65 weatherproof level, so it can be used normally in rainy days.
7. Floor led screen can bear 1 ton weight, IP65 weatherproof level.
>> Specifications
| Pixel pitch | 16 mm |
| pixel density | 3906Dots/m2 |
| Pixel configuration | 1R1G1B |
| Led stand | SMD0805 |
| Moudel resolution | 16*16Dots |
| Cabinet resolution | 256mm X128mm |
| Cabinet size | 1024 x768 x 120mm |
| Cabinet weight | 30kg |
| Brightness | > 800cd/m |
| Optimal visual distance | >15m |
| Luminance material | USA chips |
| Average power consumption | >0.4KW/m |
| Horizontal >140C° Vertical >140C° MTBF | >10000 |
| Gray grade level | Point-by-point 4096 gray grade levels foreach color,correction is available. |
| Gray grade correction | 32-level nonlinear gray grade correction |
| Control method | 1/8 dynamic scan |
| Protection level | IP31 |
>> Description
Brightness adjustment: Software allows continuous adjustment
from 0% to 100% according to environmental brightness.
Drive method: Constant current driving
Input signal: Video-video signal-RGB digital signal, etc.
Working voltage: AC220V+/-10%, 50Hz, or AC110V+/-10%,60Hz
Working temperature: -20 C° ~ +50C°
Storage temperature: -30 C° ~ +90C°
Ambient relative humidity: 25% ~ 95% RH
Communication distance: Network cable: 120m, multi mode fibre
cable: 500m, single mode fibre
cable: 15km
Screen life: 50,000 hours
