Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFCP2000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Usage: |
Outdoor |
Tube Chip Color: |
Full Color |
Display Function: |
Video |
Pixels: |
20mm |
Brightness: |
6000 To 8000cd/sqm |
Protection Level: |
IP65 |
Usage: |
Outdoor |
Tube Chip Color: |
Full Color |
Display Function: |
Video |
Pixels: |
20mm |
Brightness: |
6000 To 8000cd/sqm |
Protection Level: |
IP65 |

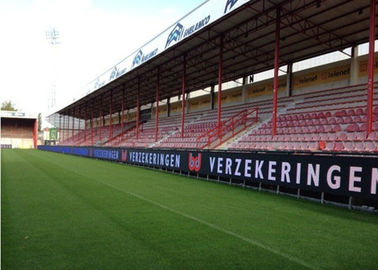

Stadium Perimeter Outdoor Full Color LED Display P20mm With Physical / Virtual Pixel
which makes the picture more clear and vivid, no flicker and blind dots. It can be assembled,
disassembled and repaired very easy.
Wide application field: advertising LED display, stadium perimeter LED display, mobile led display
for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display
for rates showing, stage performances and so on.
>> Features & Technical Specification
1. Wide application field: advertising LED display, stadium perimeter LED display, mobile led display
for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for
rates showing, train & bus station, airport, telecommunication LED screen system for information
showing and instruction, stage performances and so on.
2. High Contrast and Frequency: 4000:1 and 5000HZ, which is a very high level to ensure a vivid image
of our LED screen system.
3. Good quality LED chip: Supplied by Nichia, Cotco cree,Toyota,Silan.Optec,& other high strictly
selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Very high quality and Clear vivid image quality: even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. High Brightness of LED Display: 7500-nit brightness (for outdoor full color)(more than 2000 nits brightness for indoor full color) capacity throughout product lifetime of the LED
display6. Easy Installation & Using: easy & simple installation interface and user friendly software to
ensure the user friendly interface of the LED screen system.
>> Parameter table
| Pixel pitch | 20mm | LED encapsulation | DIP 346 |
| Pixel configuration | 1R1G1B | View Angle | 120°/90° |
| Module Resolution | 16x16dots | Module size | 192x192mm |
| Pixeldensity | 6,944dots/sqm | Brightness | >8000nit |
| Working Temp | -20°C~+60°C | Max power consumption | 850W/sqm |
| Working Humidity | 10%~90% | Average power consumption | 300W/sqm |
| Working voltage | AC110/220V | Driving Method | 1/2 scan,constant current |
| Optimum viewing distance | >10m | Refresh rates | ≥1200Hz |
| MTBF | >5,000hours | R:625nm±5.0nm,IV:400-450mcd | |
| Gray level | RGB/8192/14bit | LED parameter | G:525nm±2.5nm,IV:1,800-2,200mcd |
| Life span | >100,000hours | B:470nm±2.5nm,IV:350-450mcd | |
| Blind sport rate | <0.00001 | Display Function | Graphic,Animation,and Video |
| Warranty period | 1 years | Usage | fixed/rental |
| Signal sources input | DVI,VGA,SDI,HD-SDI,TV,HDTV,NTSC/PAL,S Video,etc | ||
| Wide Application | Outdoor / indoor Sports perimeter, football stadium, basketball stadium, soccer stadium etc. | ||
1. Designed according to the client's atandards.
2. Usage: Outdoor / Indoor Sports perimeter, football stadium, basketball stadium, soccer stadium etc.
3. Waterproof: IP65 front, IP43 rear. The system can stand all weather condition.
4. High luminance and uniformity, wide view angle and various content show.
