Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFCP1610
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Usage: |
Outdoor |
Tube Chip Color: |
Full Color |
Display Function: |
Video |
Pixels: |
16mm |
Brightness: |
6000 To 8000cd/sqm |
Protection Level: |
IP65 |
Usage: |
Outdoor |
Tube Chip Color: |
Full Color |
Display Function: |
Video |
Pixels: |
16mm |
Brightness: |
6000 To 8000cd/sqm |
Protection Level: |
IP65 |

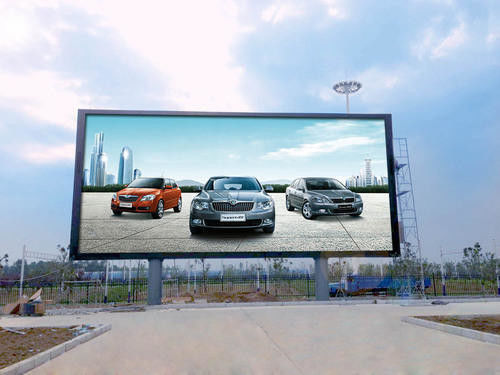

Fixed Outdoor Full Color LED Display Pixel Pitch 16mm , Soccer Stadium Big Screen
The stadium led displays are widely used in the football field, basketball court , swimming center and diving center.
1. Show function(advertising, such as Nike, Coca cola,etc)
2. Function of time and score(live showing the score)
3. Information processing function
4. Emergency treatment function
>>Specifications for perimeter led display screen
| Pixel pitch | 16mm | Module size | 256×128mm |
| Pixel configuration | 1R1G1B | Module resolution | 16×8dots |
| View angle | 110°/55° | Pixel density | 3,906dots/m² |
| LED encapsulation | DIP346 | Refresh rates | >3000Hz |
| Driving Method | static, constant current |
Max power consumption |
700w/m² |
| Brightness | >7500nits | Average power consumption |
350w/m² |
| Working voltage | AC110/220V | Working temp | -20°C to +60°C |
| Best viewing distance | >12M | Working humidity | 10%~90% |
| LED parameters | R:625nm±5.0nm IV:1400-1500mcd |
MTBF | >5000 hours |
| G:525nm±2.5nm IV:2500-2800mcd |
Gray level | RGB/8192/14bit | |
| B:470nm±2.5nm IV:600-650mcd |
Lifespan | >100,000 hours |
>>Products function introduction
1) High intensity and can be adjusted, so can meet the request of the customers according the
application environment;
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;
3) To pictures and character, have clear, exquisite and real display effect;
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every
angle at this range, no picture change, no color excursion;
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
>>Products Advantages
1) Price Advantage: we have the best competitive price at the market;
also have the same even better quality;
2) Performance Advantage: Best Equality, high consistency, Big viewing angle,
can repair each led lamps;
3) Quality advantage: From material to finished product, from design to produce,
we control all steps that are the guarantee of the quality and reliability;
4) Service advantage: Better service at same situation, better cooperation at same service.
