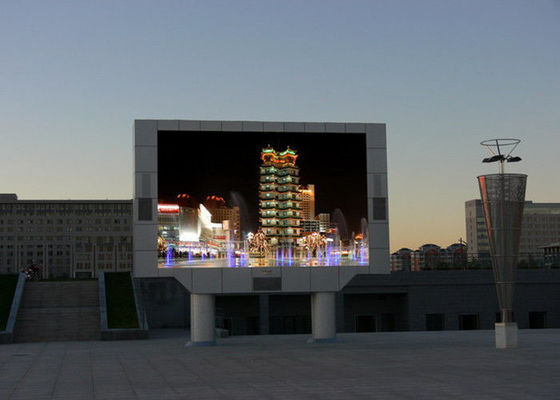

Outdoor Full Color LED Display Screen

Outdoor Full Color LED Display Screen

  • Outdoor Full Color LED Display Screen
  • Outdoor Full Color LED Display Screen
Outdoor Full Color LED Display Screen
Product Details:
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFCP1006
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Contact Now
Detailed Product Description
Brightness: 7500 Nits Pixel Density: 10,000 Pixels/sqm
Working Voltage: DC +5V Weight / Cabinet: 40 Kg
Physical Pixel Pitch: 10mm LED Configuration: 1R, 1G, 1B SMD
High Light:

outdoor advertising led display

,

outdoor fixed led display


High way Airport Tri-color full color outdoor LED display screen 7500 nits Aluminum cabine



 Our outdoor SMD series offers 24/7 reliability at a low cost of ownership. With less power consumption and a lighter weight than similar products, Visual Lumen's outdoor RGB LED displays are a perfect fit for digital signage and sports applications.

The outdoor SMD features environmentally friendly technologies that reduce light pollution, such as contrast enhancing shaders that allow for lower brightness and lower power consumption as well as a higher visual performance and a downward angle on its LEDs.

This ensures that light is well targeted at your audience and that less excess light is spilled, which leads to a lower power consumption and longer lifetime.



 >> Specification of Outdoor LED Display



Pixel pitch 10mm
Brightness 7500 nits
Brightness adjusted 100 grade by software, or Auto-optic
Color temperature Could be adjusted by software
LED configuration 1R, 1G, 1B SMD
Pixel density 10,000 pixels/sqm
  9,216 pixels/cabinet (96 * 96)
Hor.viewing angle 140 degree (min 50% brightness)
Vert.viewing angle 140 degree(min 50% brightness)
Lifetime 100,000 hours to 50% of initial brightness
MTBF 10,000 hours
Power consumption 1000 w/sqm (Max)
  500 w/sqm (Average)
Operation power voltage AC 110V / 50 - 60Hz
(Option, we'd confirm before production) AC 220V / 50 - 60Hz
AC 100-240V / 50-60Hz
Working voltage DC +5V
Cabinet dimensions Width: 960mm
  Height: 960mm
  Depth: 150mm
Weight / Cabinet 40 Kg
IP rating IP66 Front side
  IP65 Back side
Processing 14 bit/color
Colors 4.4 trillion
Refresh rate 2000 Hz
Frame rate 60Hz
Link interface DVI
Serviceablity Back, (Front & Back are option)
Source compatibility DVI,SDSDI,HDSDI,VGA,HDMI,YPbPr,PAL/NTSC system composite
Certifications CE,FCC,RoHS



 >> Features



 1. Preeminent effects: Clear and stable pictures without distortion and disturbance.

 2. High quality: Adopting first-class chips and wafers imported from abroad

 3. Flexible form: Continuity, overlying, combination of dynamic and static playing, various effects include rolling moving, typewriting, gradual changing and so on

 4. Offline running function: Adopting the monolithic design technology and computer string communication way, which can operate in off-line state setting the dates and revising a data via the telephone line

>> Q&A



 1. What is the data connection between panels?

Each panel has 1 input and 1 output making connection between panels very simple.



 2. Does the sending unit have a scaler?

We offer a variety of solutions, some have scalers built in, others do not. Most scaling is done with outside software or controllers.
