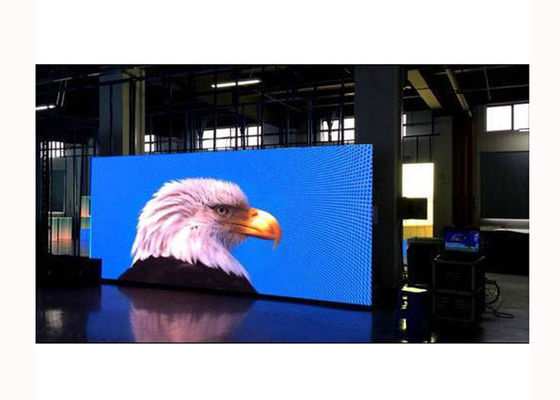

SMD Black P6 Indoor Full Color LED Display 900 - 1500 Nits Whiteness Brightness

SMD Black P6 Indoor Full Color LED Display 900 - 1500 Nits Whiteness Brightness

    • SMD Black P6 Indoor Full Color LED Display 900 - 1500 Nits Whiteness Brightness
    • SMD Black P6 Indoor Full Color LED Display 900 - 1500 Nits Whiteness Brightness
  • SMD Black P6 Indoor Full Color LED Display 900 - 1500 Nits Whiteness Brightness

    Product Details:

    Place of Origin: Shenzhen ,China
    Brand Name: DDW
    Certification: CE/ROHS/FCC/UL/ISO/3C
    Model Number: DDW-IFCP6002

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Plywood or Flight Case
    Delivery Time: 7-20 days
    Payment Terms: Bank T/T transfer, Western Union
    Supply Ability: 6000sqm/month
    Contact Now
    Detailed Product Description
    Tube Chip Color: Full Color Protection Leve: IP65
    Whiteness Brightness: 900 - 1500 Nits Module size: 288 X 288mm
    Weight: 12Kg Pixel Type And Configuration: 1R1G1B
    High Light:

    indoor led display board

    ,

    indoor fixed led display



    SMD Black P6 Indoor Full Color LED Display 900 - 1500 Nits Whiteness Brightness



     Indoor LED Display is especially suitable for rental use. It's very lightweight and thin. Easy to assemble and dis-assemble. One person is able to hold a cabinet with one hand easily.



     >> Function and Technology characters



     1. Show all kinds of word, text, graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other formats with your PC does synchronously.



     2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI, MOV, MPG, etc. We have three display modes as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.



     3. 10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade



     4. Line-Double technology is adopted for the picture adjustment.

     5. Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.



     6. It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc



     Product Description



    Item Specification
    Pixel Physical pixel pitch: 6 mm
    Pixel configuration: 1R1PG1PB
    Module Module resolution: 48 x 48pixel Module size: 288 x 288mm
    Cabinet Cabinet resolution:96x96pixel Cabinet size:576 x 576x60mm
    Cabinet :9216pixels Module Qty:4pcs=2(W)x2(H)
    Material: Aluminum Weight: 12Kg
    Average power: 120W Max power consumption: 220W

    Electricity

    parameter

    Brightness: 900 - 1500 nits
    Brightness adjusted: 100 grade by software, or by Auto-optic induced
    Color processing: 16bit
    Display color: 280 trillion
    Color temperature(k): 5000 — 9500 (choice by user)
    Physical density: 27777 pixels/sqm
    Whole display flatness: ≤ 1mm juncture
    Best view distance: ≥ 5m
    Best view angle: Horizontal ±80°, Vertical ±80°

    Storage temperature: -35℃ ~ +85℃

    Working temperature: -20℃ ~ +50℃

    Driving method: Constant driving current Scan: 1/12
    Refresh frequency: ≥ 1200Hz
    Frame rate: ≥ 60Hz
    Humidity(RH): ≤ 90~95%
    Protection grade: IP64
    Working Voltage: DC 5V
    Power supply: AC 110 / 220V, 50/60Hz
    Average power consumption:300w/sqm
    Max power consumption: 600w/sqm
    MTBF: 10, 000 hours
    Screen lifetime: 100, 000 hours

    Control

    system

    Signal interface: DVI
    Communication distance: Internet cable: ≤120m Fiber cable: 1000m
    Signal transfer mode: Pixels to pixels display synchronized



     >> High purity aluminum die casting P6 Stage Indoor LED Display



     1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.



     2.Thin cabinet:the thickness isonly10 CM, the space of the screen is small , and the entire screen will be more beautiful.



     3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.



     4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.



     5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
