Shenzhen DDW Technology Co., Ltd. info@ddwled.com 86-180-07555858
Product Details
Place of Origin: CHINA
Brand Name: DDW
Certification: CE,ROHS
Model Number: OES6
Payment & Shipping Terms
Minimum Order Quantity: 1square meter
Price: Negotiable
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sqm per month
Pixel Pitch: |
3.91mm |
Module Size: |
250*250mm |
Panel Dimension: |
500*500mm |
Display Function: |
Video |
Mode Driving: |
1/8S |
Brightness: |
5000nits |
Pixel Pitch: |
3.91mm |
Module Size: |
250*250mm |
Panel Dimension: |
500*500mm |
Display Function: |
Video |
Mode Driving: |
1/8S |
Brightness: |
5000nits |
MPLED Full Color SMD indoor outdoor rental stage led screen pantalla ecran led P4 P3 P3.91 P4.81
Module Parameter:
| Pixel pitch | 3.91mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 250x250mm |
| Module resolution | 64x64dots |
| Module quantity per cabinet | 4pcs |
Cabinet Parameter:
| Cabinet size | 500x500mm |
| Cabinet material | die- casting aluminum |
| Cabinet weight | 6.5kg |
| Cabinet resolution | 128x128 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 65410dots/m² |
| Brightness | ≥1200 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3.9m |
| Max.power consumption | 850W/m² |
| Avg.power consumption | 280 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, internet etc. |

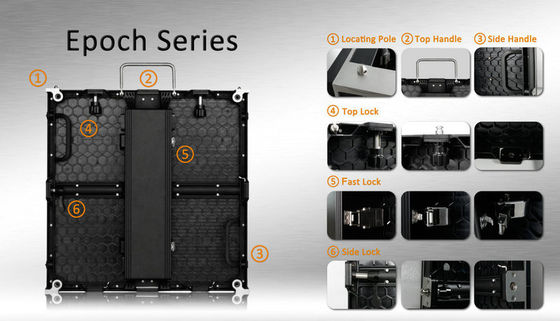

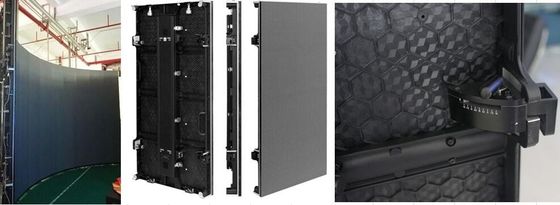

Cabinet
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
