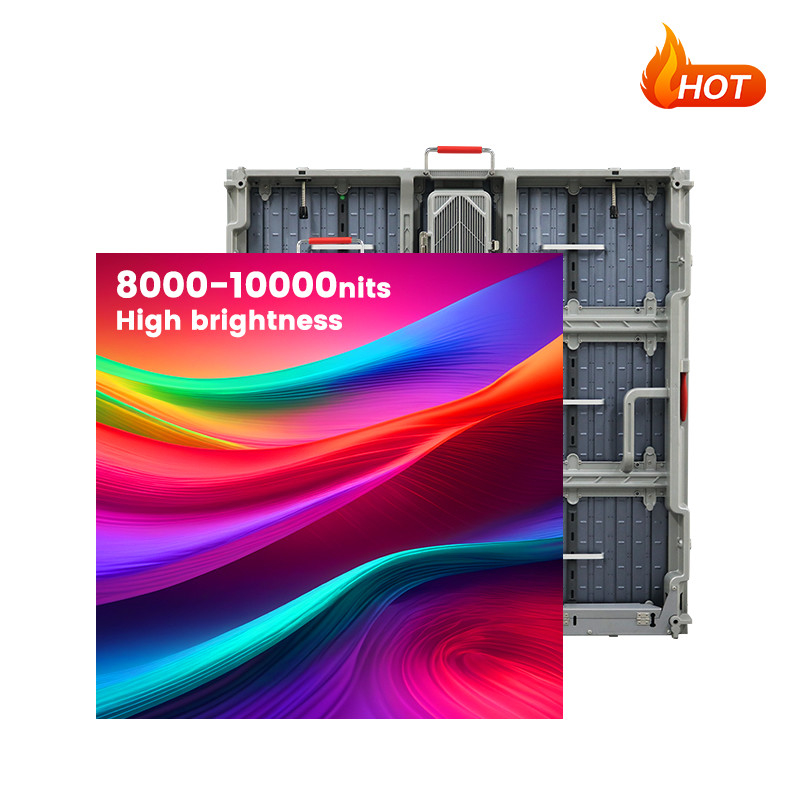

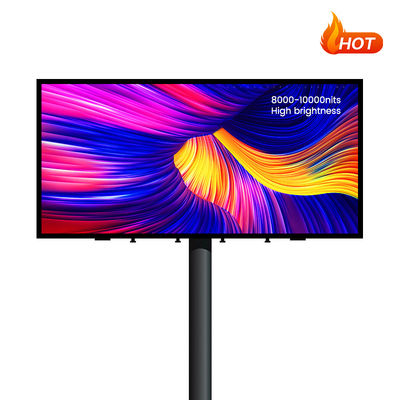

Advertising Led Board LED Screen Commercial Advertising P6.67 Outdoor LED Screen Full Color 8000cd/sqm 960*960mm
Product Details:
| Place of Origin: | GuangDong |
| Brand Name: | DDW OR OEM |
| Certification: | CE,ROSH,FCC,ISO9001 |
| Model Number: | FAPRO Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Pixels: | P5 P6.67 P8 P10 | Module Size: | 480*320mm |
|---|---|---|---|
| Brightness: | 8000-10000nits | Refresh Rate: | 7680Hz |
| Protection Degree: | IP68 | Cabinet Material: | Die-casting Aluminum |
| Input Voltage: | AC100-240V, 50/60Hz | Cabinet Size (WxHxD): | 960x960x100 |
Product Description
| Pixel Pitch | 5mm | 6.667mm | 8mm | 10mm |
| Packaging method | SMD 1921 Triple In - (Six Leg Lamp) | |||
| Brightness | 8000cd/m2 | |||
| Module resolution | 96x64 Dots | 72x48 Dots | 60x40 Dots | 48x32 Dots |
| Module size (WxH) | 480mmx320mm | |||
| Pixel density | 40000 pixels/m² | 22500 pixels/m² | 15625 pixels/m² | 10000pixels/m² |
| Cabinet resolution | 192x192Dots | 144x144 Dots | 120x120 Dots | 96x96Dots |
| Cabinet size (WxHxD) | W960mmxH960mmxD100mm | |||
| Cabinet weight | 27kg/m² | |||
| Maintenance method | Front and rear maintenance | |||
| Protection level | Front IP68 and rear IP66 | |||
| Cabinet flatness | ≤0.4mm | |||
| Module/box material | Aluminum/Die cast Aluminum | |||
| Module connection method | Hard connection design | |||
| Module signal connection point | Dual backup redundancy | |||
| Color temperature | Adjustable from 2000K to 15000K | |||
| Viewing angle | Horizontal>160 °, vertical>110 ° | |||
| Physical contrast (black/white) | 8:01 | 10:1 | 15:1 | 24:1 |
| Reflective coefficient (white ratio) | 12% | 9% | 6% | 4% |
| Maximum power | 700W/m² | 650W/m² | 660W/m² | 590W/m² |
| Average power | 70-180W/m² | 70-180W/m² | 70-180W/m² | 70-180W/m² |
| Power parameters | AC 100~240V/low voltage power supply | |||
| Grayscale | 16bit | |||
| Refresh rate | 7680Hz | |||
| Frame frequency | 50/60 Hz | |||
| Operating temperature/humidity range | -20℃~+60℃/10~90%RH | |||
