Shenzhen DDW Technology Co., Ltd. info@ddwled.com 86-180-07555858
Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ISRP5000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Brightness: |
>2000cd/sq.m. |
Tube Chip Color: |
Full Color |
Pixels: |
5mm |
Single Cabinet Weight: |
26KG |
Gray level: |
16 Bits |
Name: |
Stage Rental LED Display |
Brightness: |
>2000cd/sq.m. |
Tube Chip Color: |
Full Color |
Pixels: |
5mm |
Single Cabinet Weight: |
26KG |
Gray level: |
16 Bits |
Name: |
Stage Rental LED Display |

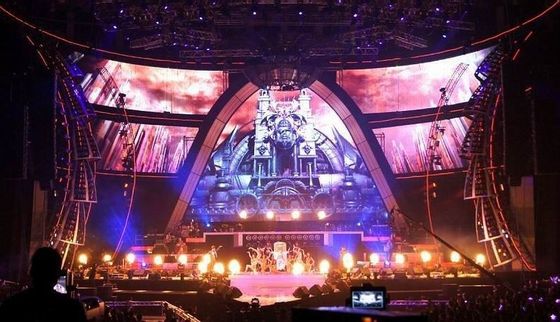

P5 Stage Background Led Display Big Screen Rental Video Wall 120 Degree Viewing Angle
>>Functions and technology character
1. Multiplied file formats such as AVI, MOV, MPG, DAT and VOB are comprehensive
2. Three display modes as VGA, VIDA and VGA
3. Interfaces for sound signal and video signal
4. Shows all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with PC
5. Line-double technology is adopted for the picture adjustment
6. Can be connected with PC
7. Web net and show the content
8. Also can be controlled remotely via VPM and ADSL
| 1 | Pixel Pitch | 5mm |
| 2 | Chip of LED | SILAN |
| 3 | LED per pixel | 3in1 (first selection LEDs, to ensure color uniformity) |
| 4 | Resolution | 40000 pixle/sq.m. (uniformly spread over the surface, to ensure homogeneity) |
| 5 | LED Number per/sq.m. | 40000 |
| 6 | Single Module Dimension/Pixel(W x H) | 160mm x160mm 32 x 32 pixels |
| 7 | Single Cabinet Dimension/Pixel(W x H) | 960mm ×640mm 192 ×128 pixels |
| 8 | Cabinet Configuration (W×H) | 6*4 modules |
| 9 | Cabinet Material | Aluminium&rental cabinets |
| 10 | Single Cabinet Weight | 26KG |
| 11 | IC Driver | IBM 5026 |
| 12 | Power Supply | Taiwan Meanwell |
| 13 | Best View Distancing | 3-100 m |
| 14 | Vertical Viewing Angle | 120degree(Standard LEDs Viewing Angle) |
| 15 | Horizontal Viewing Angle | 120degree(Standard LEDs Viewing Angle) |
| 16 | Gray level | 16 bits |
| 17 | Available Color Palette | 281 trillions colors(to see detail even in the darkest area of the image) |
| 18 | Brightness | >2000cd/sq.m. Ensure brilliant images |
| 19 | Brightness Adjustment | Manual, 256 level; Auto, 8 levels |
| 20 | Grey Scale | 16,384 Shades Per Color |
| 21 | Operating Temperature | –30~+85 10%~95%RH |
| 22 | Temperature Checkup | 16 Sensors/Module (to avoid over-heating and sonstantly preserve your nvestment |
| 23 | LEDs Lifetime | >100,000 Hours(over 11 years lifetime) |
| 24 | Input Voltage | AC220±10% 50Hz or AC 110±10% 60Hz |
| 25 | Input Power Frequency | 50/60Hz |
| 26 | Screen Power Consumption | Max: 750w/sq.m. ; Average: 450w/sq.m. |
| 27 | Refresh Rate | 240HZ(no flickers while camcorder recording) |
| 28 | Frame Rate | > 60 frames/sec |
| 29 | Defect Rate | ≤0.0002 |
| 30 | Data Transfer Method | RJ45 |
| 31 | Humidity | 0--90% |
| 32 | Control Method | Synchronized with computer monitor |
| 33 | Way of Drive | 1/16scanning |
| 34 | MTBF | > 10000 hours |
| 35 | Color Temperature | 6500K±500 |
| 36 | Support Mode | VGA, 800*800 display synchronically with the computer, correspondence dot to dot |
| 37 | Control Distance | 120 m (no repeating); Optical fiber transmission: 500m- 10km |
| 38 | Systems Operating Platform | WINDOWS(WIN95,WIN98,WIN2000, WINXP), with a friendly UI, and interfaces for secondary development. |
