Telecommunication Advertising DIP546 Outdoor LED Billboard 7000nits

Place of Origin Shenzhen ,China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Model Number DDW-OBP1403
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Plywood or Flight Case
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Tube Chip Color Full Color Resolution/cabinet 64×48(dot)
Viewing Angle (H/V) H:100±5°V:45° Module Size 224mm×112mm
Pitch size 14mm LED Standard DIP546
High Light

Telecommunication Advertising Outdoor LED Billboard


DIP546 Outdoor LED Billboard


7000nits Outdoor Led Message Board

Leave a Message
Product Description

Dustproof Outdoor LED Billboard Telecommunication Advertising LED Display Signs


 >> Advertising LED Display

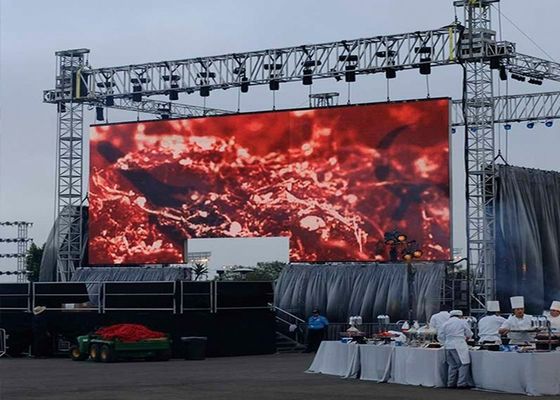

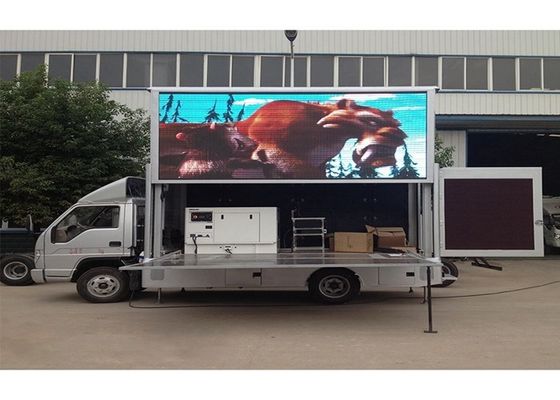

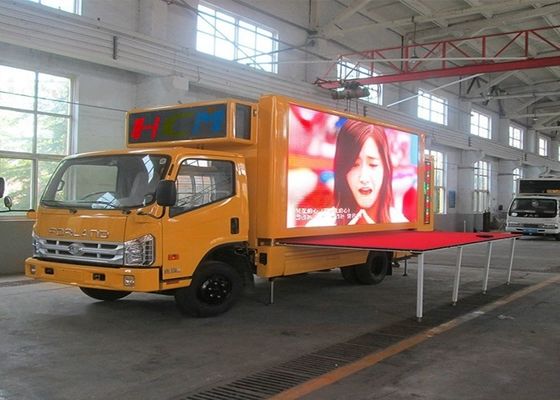

 1. Wide application field: advertising LED display, stadium perimeter LED display, mobile led display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, stage performances and so on.
 2. High Contrast and Frequency: 4000:1 and 5000HZ, which is a very high level to ensure a vivid image of our LED screen system.
 3. Good quality LED chip: Supplied by Nichia, Cotco cree,Toyota,Silan.Optec,& other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
 4. Very high quality and Clear vivid image quality: even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
 5. High Brightness of LED Display: 7500-nit brightness(for outdoor full color)(more than 2000 nits brightness for indoor full color) capacity throughout product lifetime of the LED display.
 6. Easy Installation & Using : easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.


  Specification PH14
1 Pitch 14mm
2 Module Resolution 16×8=128 (dot)
3 Module Size 224mm ×112mm
4 Module Quantity/cabinet 24(Pcs)
5 Cabinet Size 896mm×672mm
6 Resolution/cabinet 64×48(dot)
7 Density 5102(dot/s.q.m)
8 LED Driving method Constant driving / 1/2 Scan
9 LED Standard DIP546
10 Viewing Angle (H/V) H:100±5°V:45°
11 Brightness ≥7000CD/s.q.m
12 The Optimal viewing distance 15-200m
13 Display Colors 687(million)
14 Pixel configuration 1R1G1B
15 Protection Degree 65(IP)
16 Power (Max.Consumption): True pixels:1000 W/s.q.m
(Average Power): True pixels:450 W/s.q.m
17 Control mode Video Sync
18 Display Mode (Max)1024×768/1280×1024
19 LED Parametres (R):λd (619~624nm)IV: (460~510mcd)
(G):λd (520~524.5nm)IV: (2000~2300mcd)
(B):λd (468.5~472.5nm)IV:(490~540mcd)
20 Rate ≥300Hz
21 Communication 1000M Cats(≤120M)/Fiber optical (10.000m)


 >> Features


 1) Reliable quality, advanced and mature technology, compliant with industrial
standards and technology developing trend
 2) Good heat emission, water proof and stable performance
 3) Audio and video interface of the system can offer vivid, complete and high
quality LED display to TV broadcasting signal
 4) High resolution and definition of screen image, clear and non-flash screen
 5) Supports video and radio frequency input, special structure can be freely
 6) Widely used in stadium, bank, restaurant, station, shopping center,
government, schools, entertainment, and enterprise
