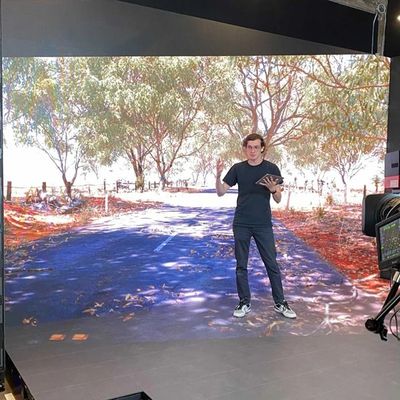

Custom Design Commercial Led Screen , Street Movie XR Stage Led Display
Product Details:
| Brand Name: | DDW |
| Certification: | CE/ROHS/FCC/UL/ISO/3C |
| Model Number: | DDW-LEDXR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1~10 |
|---|---|
| Packaging Details: | Quality carton with full wood box packing/Flight case |
| Delivery Time: | 7-20 days |
|
Detail Information |
|||
| Pixels: | 1.95mm | Color: | 1R1G1B |
|---|---|---|---|
| Module Size: | 250*250mm | Brightness: | 800cd/m² |
| Refresh Rate: | 3840Hz | Weight: | 6.5KG |
| Highlight: | FCC Commercial Led Screen,XR Stage Led Display,Street Movie XR LED Screen |
||
Product Description
High Quality Commercial Led Screen Custom Design Street Movie XR Stages Led Display Led Screen Display
Cabinet Specs
First class design for die casting cabinet frame, each cabinet (include all components) is only 7 kg , four sets strong fast lock to make assembling to be easier
Friendly Maintenance
The cabinet adopt cable-less design and HUB board design(integrated power board and receiving card) which can be maintenence in seconds, magnetic modules with front and rear maintenance
Comparision
Compared with traditional screens, the screen has higher performance, supporting up to 7680Hz High refresh rate, High Gray Scale, real and natural high dynamic picture display, without block shadow
Creative combination
Allows to make curve video wall Inner outer arcs 15°,0°,-15° adjustable,right angle combination and other creative combinations
Specifications
| Item/Model | P1.95 | P2.5 | P2.6 |
| Pixel Pitch | 1.95mm | 2.5mm | 2.6mm |
| LED Tube led | 250*250mm | ||
| Module resolution | 128*128dots | 100*100dots | 96*96dots |
| Module weight | 0.35kg | ||
| cabinet size | 500*500mm | ||
| Cabinet resolution | 256*256dots | 200*200dots | 192*192dots |
| Module quantity | 4pcs | ||
| Pixel density | 262144dots/sqm | 160000dots/sqm | 147456dots/sqm |
| cabinet weight | 6.5kg | ||
| Interactive way | External radar interaction | ||
| Refresh rate | 3840Hz | ||
| Input voltage | AC220V/50HZ OR AC110V/60HZ | ||
| Protection level | IP35 | ||
| Brightness | 1000cd/m² | ||
