1. Special PCB design for virtual product in film industry . Customized 1/8 scan ,1/16 scan PCB and golden wire black led lamps decrease the effect of reflection .
2. High precision curve fast lock design , realize seamless curve connection when you splice them into big curve .
3. Support front / rear maintenance .
4. With Brompton control system , it can help heat effect and color calibration , realize high frame rate .
First class design for die casting cabinet frame, each cabinet (include all components) is only 7 kg , four sets strong fast lock to make assembling to be easier
Friendly MaintenanceThe cabinet adopt cable-less design and HUB board design(integrated power board and receiving card) which can be maintenence in seconds, magnetic modules with front and rear maintenance
The thinner and lighter high-precision cabinet and interlocking function enable the installer to complete the installation very quickly and efficiently, such as direct wall mounting, hanging and stacking arc installation, thus saving time, energy and personnel costs.
| Item/Model | P1.95 | P2.5 | P2.6 |
| Pixel Pitch | 1.95mm | 2.5mm | 2.6mm |
| LED Tube led | 250*250mm | ||
| Module resolution | 128*128dots | 100*100dots | 96*96dots |
| Module weight | 0.35kg | ||
| cabinet size | 500*500mm | ||
| Cabinet resolution | 256*256dots | 200*200dots | 192*192dots |
| Module quantity | 4pcs | ||
| Pixel density | 262144dots/sqm | 160000dots/sqm | 147456dots/sqm |
| cabinet weight | 6.5kg | ||
| Interactive way | External radar interaction | ||
| Refresh rate | 3840Hz | ||
| Input voltage | AC220V/50HZ OR AC110V/60HZ | ||
| Protection level | IP35 | ||
| Brightness | 1000cd/m² | ||

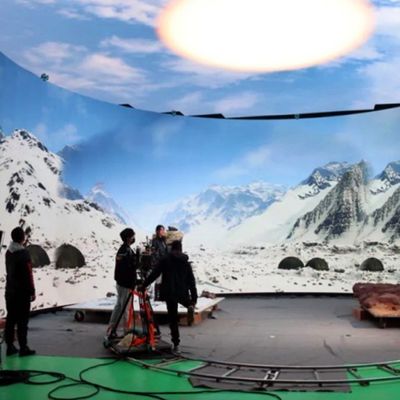

This model usually is usually used for movie virtual production in movie studio and immesive stage for big concerts with unreal engine and professional vr equipment .
Led screen is becoming a trend for movie studio background and immersive stage nowadays .
It will make people and audience get immersed in virtual environment ,and enter into a new world of advanced technology of future .
With our screen and other high-tech products , people can interact with content in video .
Let us feel the power of technology !
Our products are sold all over the world, you can rest assured.
