IP67 P16 Outdoor Full Color LED Display Road Side With High Contrast Energy Saving

Place of Origin Shenzhen ,China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Model Number DDW-OFC1600
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Plywood or Flight Case
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Usage Outdoor Tube Chip Color Full Color
Display Function Video Pixels 16mm
Brightness 6000 To 8000cd/sqm Protection Level IP65
High Light

outdoor fixed led display


outdoor full color led screen

Leave a Message
Product Description

IP67 P16 Outdoor Full Color LED Display Road Side With High Contrast Energy Saving

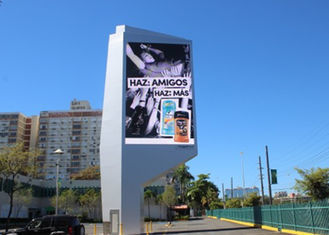

The p16 outdoor LED Display of LED Solution use state-of-art DIP LEDs, which has the brightness 6000 to 8000nit. The LED display has the advantage of excellent flatness, super uniform color, brightness and long viewing distance. it is widely used on street, building, supermarket, entertainment place, and sports field, live show stage, meeting room, airport, hotel and many other places for advertising and other usage.


>> Features of the outdoor LED Display:
 * Weatherproof to IP65 standards
 * High resolution images and long lifetime
 * Easily configured for various size and aspect ratios
 * Wide viewing angle
 * Brightness from 6000 nits onwards


>> Specifications of outdoor P16 led display:

tem Specification





Pixel unit module

Pixel pitch 16mm
Pixel density 3906dots/m²
Pixel configuration 1R1G1B or 2R1G1B
LED type DIP346 or DIP 546
Module size 256*256mm or 320*320mm
LED parameters









Pixel unit screen

Screen size based on customer need (mm)
Module resolution 16*18dots or 20*20dots
Cabinet structure Water-proof
Screen material Iron or aluminum
Protect degree IP65



Display parameters

Viewing distance >14m
Brightness >7000nit
Power consumption Max power consumption 1000w/m²
Average power 350w/m²
Driving IC static, constant current
Refresh rate ≥3000HZ
Viewing angel 120°/90°
System working voltage AC 110/220V






Other parameter

Working temp -20°C to +60°C
Working humidity 10% ~ 90%
MTBF >5,000hous
Gray level RGB/8192/14bit
Life span >100,000hours
Control system Sending card + Receiving card + Hub card +PCTV Non-liner card + Muti-funcational card(Optional) + Video processor(Optional) + Fiber Transmitter (Optional)
Color temperature/contrast Brightness and contrast of red, green and blue can be adjusted by software.
Image processing Video denoising, rapid motion compensation, edge sharpening, edge smoothing
Color coordinate conversation & control, grey scale transformation etc


>> Feature:
 1. Enhanced image quality. Incorporating BENE cutting edge technology LED displays ensure perfect video and graphics performance with great color depth and uniformity across the entire surface of the screen.


 2. Wide viewing angle. Perfect BENE design and high quality LEDs provide a viewing angle of more than 120° (min. 50% brightness).


 3. Full protection and reliability. BENE outdoor video displays are fully protected from water and dust in accordance with IP65 classification.
