Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFCP5000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Usage: |
Outdoor |
Tube Chip Color: |
Full Color |
Display Function: |
Video |
Pixels: |
5mm |
Brightness: |
6000 To 8000cd/sqm |
Protection Level: |
IP65 |
Usage: |
Outdoor |
Tube Chip Color: |
Full Color |
Display Function: |
Video |
Pixels: |
5mm |
Brightness: |
6000 To 8000cd/sqm |
Protection Level: |
IP65 |

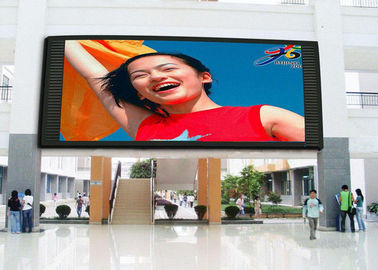

High Resolution Outdoor Full Color LED Display Waterproof P5 For Supermarkets
p5 outdoor led display is a high quality product with high definition
and super clear image.
It takes the technology of all die-casting aluminum, which is secure and nice in appearance.
It's very lightweight and each module connected by special connecting constitutionto achieve fast assembly. Fi series are suitably applied in vocal concert,
Live show ,TV station ,Meeting, nightclubs, DISCO and supermarket for displaying
and advertising use.
| Parameters | Units | Value |
| Pixel pitch | mm | 5 |
| Led type | SMD2727 | |
| Physical density | Pixels/sqm | 40000 |
| Drive mode | Duty | 1/8 |
| Module size | mm | 320*160 |
| Color configuration | 1R1G1B | |
| Module resolution | dots | 64*32 |
| Best viewing distance | m | 5-200 |
| Gray scale | levels | 14bit |
| Brightness | Nits | 5000 |
| Viewing angle | ° | H: 140/ V:140 |
| Cabinet material | Epoxy painted steel | |
| Frame rate | Hertz | 60 |
| Refresh rate | Hertz | 30~1000 |
| Input power (max) | Watts | 700 |
| Input power (typical) | Watts | 350 |
| Working temperature | °C | -40 - +65 |
| Storage temperature | °C | -40 - +85 |
| Lifetime | Hours | 100,000 |
| Red wavelength | nm | 625 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Working voltage | Watts | 110/220V |
| MTBF | Hours | 10000 |
| Life-span | Hours | 100000 |
| Computer system | WIN98, WINXP, WIN2000, WIN7,etc | |
| Input signals | RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc | |
>>Features of LED Billboard
1. High brightness and be adjustable, meets the need of the changing requirement of customer in environment;
2. Having good lightening accordance and no mosaic;
3. Using virtual pixels, better viewing effect for both text & graphic and video;
4. Having larger viewing angle: horizontal angle 140 degrees /elevation angle 140 degrees. Getting vivid effect within any position of the viewing range;
5. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
