Synchronous SMD P8 Outdoor Full Color LED Display Boards With Wide View Angle

Synchronous SMD P8 Outdoor Full Color LED Display Boards With Wide View Angle

  • High Light

    outdoor fixed led display


    outdoor full color led screen

  • Pixel Configuration
  • Pixel Density
  • Moduel Size
  • Dimension
  • Usage
  • Tube Chip Color
    Full Color
  • Place of Origin
    Shenzhen ,China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability

Synchronous SMD P8 Outdoor Full Color LED Display Boards With Wide View Angle

Synchronous SMD P8 Outdoor Full Color LED Display Boards With Wide View Angle

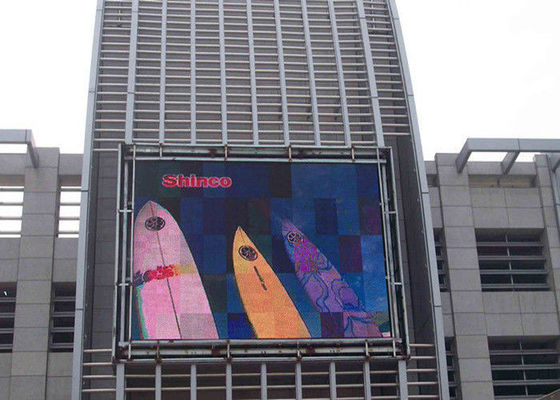

 Our Outdoor full color LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.


 >> Features


 1. By filling the whole of imported silica gel, which makes our products in water, antifreeze, superior high-temperature side


 2. After a dustproof and waterproof tested to reach its target IP65


 3. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.


 4. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness


 5. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C


 6. Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places



 >> pecification Parameter


Unit module Module size 160*160mm
Pixel pitch 10mm
Pixel density 10000dots/m2
Pixel configuration 1R1G1B
Led specification 346
Pixel resolution W:16dots*H:16dots
Cabinet Dimension 960mm*960mm*150mm
Quantities of module 36pcs
Power supply 4pcs
Thermal discharge Fan*2pcs
Total weight 50kg
Best viewing angle 10-300m
Temperature Storage: -35°C~+85°C
Working: -35°C~+85°C
Thickness 15cm can adjustable
Remarks: cabinet size can changed, upon project need.
Power Working voltage AC220V/110V±10%
Average power consumption 600W
Max. Power consumption ≤1000W/sqm
Current ≤20mA(single LED)
Control system CPU Pentium4 or above
Operating system WIN98/2000/NT/XP
Control method Synchronization
Main technical parameter Driving device 1/4 scanning
Drive type Constant Current driver IC
Refresh frequency ≥600Hz
Grey scale/colors 256 levels of each color(R/G/B)/16.7M color
Brightness of white balance More than 7500cd/sqm
Brightness adjustment 256 levels of each color(R/G/B)by software
Video signal PAL/NTSC
Control system DVI display card+full color controller card
MTBF ≥10,000hours
Life span ≥100,000hours
Flatness Tolerance of interpixel ≤0.3mm
Tolerance of modules clearance≤0.6mm
Power switch Automatic switch
Display mode 1024*768
Communication distance

Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.

Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM


 1. Easy installation, can be easily knocks down, can bear the weight,

and can be hanging install more at one time.

 2. Size: more options, according the module number

 3. Weight: depends on the material and size of the cabinets

 4. Material: Aluminum, iron, galvanized board
