SMD P10 Outdoor Full Color LED Display Wall , Energy Saving Exterior LED Screen

Place of Origin Shenzhen ,China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Model Number DDW-OFCP1008
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Plywood or Flight Case
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Model Number DDW-OFCP1008 160mm*160m Brightness(calibrating Value) ≥7500
Tube Chip Color Full Color Average Power/m2 260W
Resolution(W*H) 16×16 Pixel Density 10000 Pixels/m2
High Light

outdoor advertising led display

,

outdoor fixed led display

Leave a Message
Product Description

SMD P10 Outdoor Full Color LED Display Wall , Energy Saving Exterior LED Screen



 >> Function and Technology Character

 (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
 (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
 (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
 (4) Line-Double technology is adopted for the picture adjustment.
 (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
 (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.



 >> Spec Parameters



PLED-OF-10 Module Parameter
Dimensions(w*h) 160mm*160m Resolution(W*H) 16×16
Pixel Pitch(mm) 10mm Pixel Density 10000 Pixels/m2
Pixel Configuration 1R1G1B Tual Pixel Density
PLED-OF-10 Cabinet Parameter
Dimensions(w*h*d) 960mmx960mmx150mm Max Power/m2 780W
Physical Resolution(w*h) 96x96 Module Quantity 36
Weight/Cabinet 65kg Physical Pixels(total) 9216
Average Power/m2 260W Material Steel
PLED-OF-10 Display Parameter
Parameter Value Gray Scale 4096
Brightness(calibrating value) ≥7500 Weight 65kg/ m2
Red Wavelength(dominant) 623nm±1.5nm Colors Capability 30bits
Green Wavelength(dominant) 525nm±1.5nm Refresh Rate(PAL/NTSC) 1000HZ
Blue Wavelength(dominant) 470nm±1.5nm Minimum Frame Rate 300HZ
Brightness(max/min) 1.1:1 Drive Type Constant current drive
View Angle (min, 50% brightness) Horizontal 160(+80/-80)deg. Vertical 60(+30/-30) Scan Type 1/4 SCANING
Recommended Min. Viewing Distance 14 Control Simultaneous with PC,pixel to pixel
Brightness Control 256 Input Voltage AC220V/50Hertz or AC110V60Hertz
Date Transmission UTP<100m, Multi-mode Optical Fiber <500m; Single-mode Optical Fiber<5000m Color Temperature Brightness of Red, Green and Blue adjustable by the software 100 grade. Color Temperature adjustable according to requirement
Digital Processing 12 Defects Rate ≤0.00001
MTBF >10,000 hours Life Span(50% Brightness) >100,000 hours
Module Brightness Uniformity <5% Flatness ±1mm
Ingress Protection IP65 Ventilation Quite running fans
Earth Leakage Current <2mA Operating Temperature Range -40degree-- +60degree
Display Input Format(With Video Processor) DVI, VGA, S-Video, DVD, VCD, VHS. Operating Humidity Range 10%~99%RH
System Operation Platform WINDOWS(WIN98, WINXP, WIN2000)



 >> Advantage of led display



 1) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal



 2) High contrast ,High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.



 3) The brightness can be adjustable to meet the need of changing requirement of customer in environment



 4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .



 5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.



 6) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger



 7) Steady and reliable system, with strong anti-interference ability and long service life that can continually work for over 24 hours,and it’s easy to operate the system.



 8) Convenient installation and maintenance of display modules

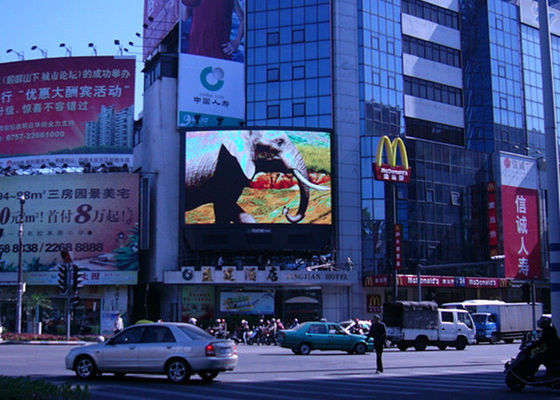

SMD P10 Outdoor Full Color LED Display Wall , Energy Saving Exterior LED Screen 0
