1R1G1B P8mm Outdoor Full Color LED Display Low Power Waterproof 100000 Hours

Product Details

Place of Origin: Shenzhen ,China

Brand Name: DDW

Certification: CE/ROHS/FCC/UL/ISO/3C

Model Number: DDW-OFCP8005

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Plywood or Flight Case

Delivery Time: 7-20 days

Payment Terms: Bank T/T transfer, Western Union

Supply Ability: 6000sqm/month

Get Best Price
Product Details
Highlight:

outdoor advertising led display

,

outdoor fixed led display

Module size:
256mm * 128mm
Refresh:
400 Hz
Brightness:
>8000nit
Pixel Pitch:
8mm
Wave Angle (H):
120°(H)/90°(V)
Pixel composing:
1R1G1B
Module size:
256mm * 128mm
Refresh:
400 Hz
Brightness:
>8000nit
Pixel Pitch:
8mm
Wave Angle (H):
120°(H)/90°(V)
Pixel composing:
1R1G1B
Product Description


1R1G1B P8mm Outdoor Full Color LED Display Low Power Waterproof 100000 Hours



 >> Detailed Product Description


 P8 Full Color Outdoor LED Display Board Low Power Waterproof



  >> Famous Brands Raw Material Selection



 1) LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.



 2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.



 3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.



 4) Connector: Aerial grade brands ensure the stable transmission of power and signal.



 5) PCB Board: adopt 4-layer design.



 6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.



>> Specification



Pixel Pitch 8mm
Pixel composing 1R1G1B
Density 15,625dots/m2
module resolution 32 dots* 16 dots
Module size 256mm * 128mm



 >> P8 SMD led display board parameters



Pixel 8mm Short circuit protection Yes
Standard cabinet size 1024mm*1024mm or design Refresh 400 Hz
Weight per sqm 40Kg/sqm Changing frame frequency 50Hz / 60 Hz
Whiteness brightness 6000-8000cd/sqm Driving method Constant driving ,1/8scan
Led package SMD 3in1 Working Environment Outdoor
Wave Angle (H) 120°(H)/90°(V) Working temperature -10~50
Best view distance ≥8m Working Humidity -10~90%
Working voltage AC 220v/380v±10%50~60Hz Out of control 1/10,000 ( scattered)
Power consumption/ m2 300W/sqm lifetime 100,000 hours



 >> Features of p8 outdoor led display board

 1. Can show information in different ways.

 2. Using real pixels not virtual pixel,better viewing effect for text,graphic and other information.

 3. Multiple design components to meet customer applications and the needs of the environment changes.

 4. Uniformity is good, and it has very good consistency luminescence.

 5. Could be remote control network.

 6. The computer can display the broadcast advertising contents that was divided into sessions and

rolling cycle to reduce the cost of advertising.

 7. Can show the bright text advertising day and night by scrolling to save the time and space.


 >> Picture show

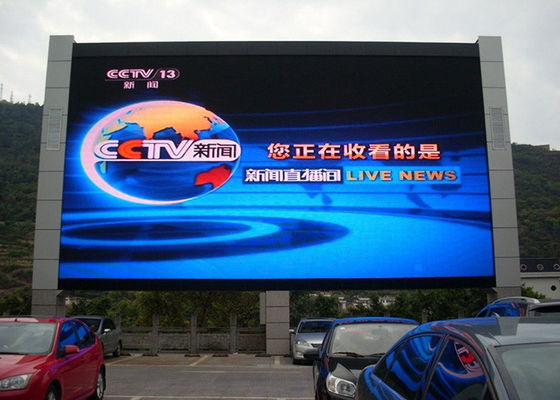

1R1G1B P8mm Outdoor Full Color LED Display Low Power Waterproof 100000 Hours 0

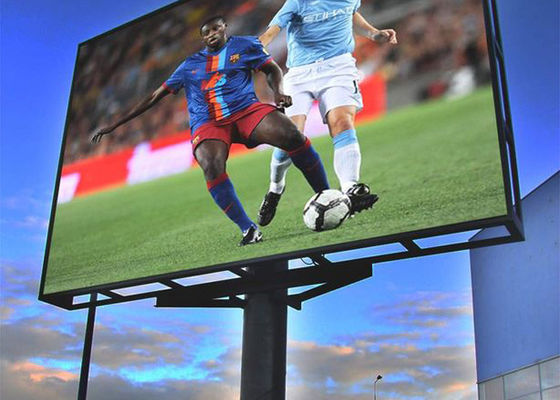

1R1G1B P8mm Outdoor Full Color LED Display Low Power Waterproof 100000 Hours 1
