Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OBP1603
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
RGB: |
2R1G1B |
Module size: |
256mm*128mm |
Grey Scale: |
10bits/1024levels |
Pitch size: |
16mm |
Physical Density: |
3906pixels/m² |
Tube Chip Color: |
Full Color |
RGB: |
2R1G1B |
Module size: |
256mm*128mm |
Grey Scale: |
10bits/1024levels |
Pitch size: |
16mm |
Physical Density: |
3906pixels/m² |

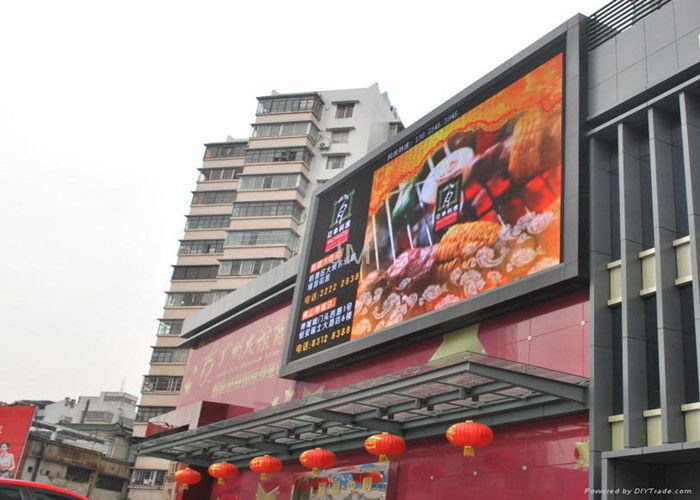

P16 Rental Outdoor Fixed LED Display Full Color For Shopping Mall Long Lifetime
p16 Advertising LED Display adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
>> Specification and Parameter
Technical DataModel | PH16 |
Pixel Pitch | 16mm |
Physical Density(pixels/m²) | 3906 |
LED Shape & Size | 3mm Oval Lamp |
LED Arrangement | 2R1G1B |
Module Size(mm) | 256×128 |
Module Resolution | 16×8 |
Drive Mode | Static Constant Current |
Brightness(cd/m²) | ≥6000 |
Contrast | ≥2000:1 |
View Angle, 50% Brightness | 110°/50° |
Minimum View Distance | 16m |
Grey Scale | 10bits/1024levels |
Color Capacity | 1.07billion |
Maximum Power Consumption | 900W/m² |
Ave.Power Consumption | 450W/m² |
Operation Power Source | AC90-260V 50-60HZ |
Frame Frequency | 60-85HZ |
Refresh Rate | 240-1000HZ |
Brightness Adjustment | 0-100% 8 levels automatic |
Gamma Correction | -5.0-5.0 |
Correction Scale Level | 16bits |
Color Temperature | 5000-9300K |
Brightness Correction | Pixels, Module, Cabinet Correction |
Input Source Support | Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI |
Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m;Single-mode Fiber:10km |
Operating Temperature | -40°C - 65°C |
Operating Humidity | 10-90%RH |
Operating Life Span | 100,000Hours |
MTBF | 5000 Hours |
Protection Ratings | IP65(Front Side),IP54(Back Side) |
Out of Control Rate | 0.01% |
>> Feature
1. With High brightness >7500 nits make the display content visible even under direct sunshine during daytime.
2. With light sensor for automatic brightness adjustment, make the brightness suitable for people’s eyes and save electricity cost, more environment Friendly.
3. Anti-UV mask, IP65 waterproof design, total outdoor use application.
4. Large viewing angle , full color, high color uniformity and clear image, bring you a vivid audio visual effect.
