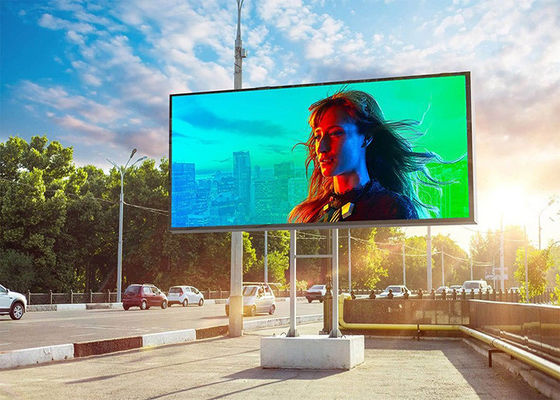

Street Outdoor Advertising Billboards RGB P10 LED Display Full Color Die Casting

Street Outdoor Advertising Billboards RGB P10 LED Display Full Color Die Casting

    • Street Outdoor Advertising Billboards RGB P10 LED Display Full Color Die Casting
    • Street Outdoor Advertising Billboards RGB P10 LED Display Full Color Die Casting
  • Street Outdoor Advertising Billboards RGB P10 LED Display Full Color Die Casting

    Product Details:

    Place of Origin: Shenzhen ,China
    Brand Name: DDW
    Certification: CE/ROHS/FCC/UL/ISO/3C
    Model Number: DDW-OBP1001

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Plywood or Flight Case
    Delivery Time: 7-20 days
    Payment Terms: Bank T/T transfer, Western Union
    Supply Ability: 6000sqm/month
    Contact Now
    Detailed Product Description
    Tube Chip Color: Full Color Scan Mode: 1/8 Scan
    Module size: 320*160mm Module Weight: 0.38KG
    Pitch size: 10mm Display Color: 256*256*256
    High Light:

    led screen billboard

    ,

    led billboard advertising



    Street Outdoor Advertising Billboards RGB P10 LED Display Full Color Die Casting



     Our P10 Advertising LED Display can display colorful dynamic and static images in real time with perfect display effect. Thus, this LED display is the most significant display in all indoor full color screens.



     The LED display supports usual VGA and DVI tradational video signal, also specially supports HDMI video signal and so on. In addition, it can receive and display video programs, such as TV programs, VCD or DVD, living show etc.



     1. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.



     2. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness



     3. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C



     >> Specification



    Item Unit Parameter
    Pixel Pitch mm 10.00
    Pixel Density dots/sqm 10,000
    Resolution of Module dots 32*16
    Module Size mm

    320*160

    HUB   75
    Led Package SMD3528
    Pixel Configuration SMD3528 1R1G1B
    Chip Brand of LEDs Silan/Epistar/Cree/Nichia
    Module Weight kgs/pc 0.38KG
    Brightness (White Balance) nits(cd/sq.m) 1500-1800
    Red Wavelength nm 620-625
    Green Wavelength nm 520-525
    Blue Wavelength nm 470-475
    Scan Mode 1/8 Scan
    View Distance M 3--50
    Best View Distance M 6--30
    Viewing Angle-Horizontal deg. 120
    Viewing Angle-Vertical deg. 120
    Module Maximum Power W 25
    Max. Power Consumption W/sq.m 500
    Avg. Power Consumption W/sq.m 150
    Working Voltage 5V 40A
    Power Supply AC 110/220V
    Waterproof Grade IP24
    Refresh Rate Hz/S 3,000
    Frame Rate Hz/S ≥ 60
    Gray Scale 4096 grades gray
    Display Color 256*256*256
    Display Function Text,news,advertising,flash,animation
    Input Signal RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
    Defective Dot Rate   <0.0001
    Life Span hours 100,000
    MTBF hours >10,000
    Storage Temperature -35 -- +80
    Working Temperature -20 -- +60
    Working Humidity 10-90%RH
    Control System Synchronization or Asynchronization
    Quality Certificate ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008
    Warrenty 1 Years
    Working Environment Indoor
    Other Fertures LED&ICs in Departed PCB



     >> Advantage



     1. The first level LED chip from Taiwan Epistar.

     2. With pure golden wire connection in LED.

     3. Grand A row material for module frame and mask.

     4. 4 layers PCB and copper plating thickness > 30mil.

     5. Ag alloy solder paster to ensure good soldering on PCB.

     6. Stainless steel screws when assembly.

     7.easy-assembly cabinet.

     8. WIFI and 3G control are available, cell phone control is ok too.

     9. Three years warranty.
