Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OBP1402
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Brightness: |
≥7000CD/s.q.m |
Display Function: |
Video |
Module Size: |
224mm×112mm |
Pitch size: |
14mm |
Density: |
5102(dot/s.q.m) |
Tube Chip Color: |
Full Color |
Brightness: |
≥7000CD/s.q.m |
Display Function: |
Video |
Module Size: |
224mm×112mm |
Pitch size: |
14mm |
Density: |
5102(dot/s.q.m) |

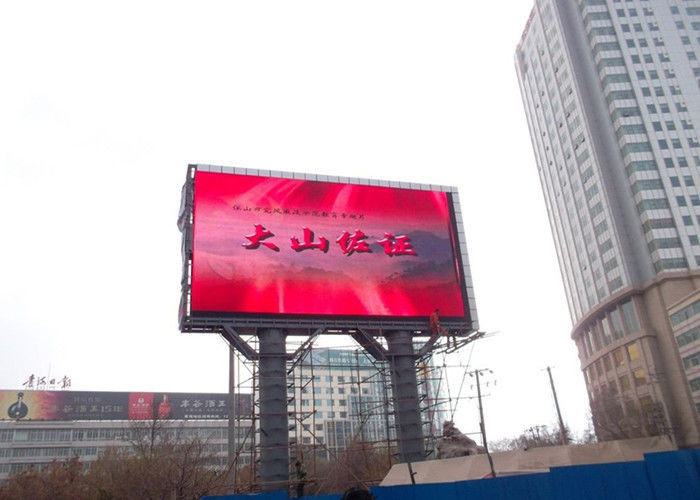

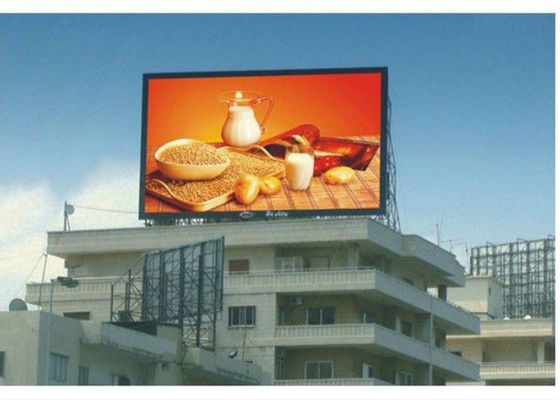

P14 Full Color Advertising LED Display SMD Module Cabinet Ultra Thin For Publics
P14 Advertising LED screens Displayadopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The Advertising LED screens Display is manufactured in a waterproof and dustproof design so it can work very well under rain and sunshine. It can be assembled, disassembled and repaired very easy, it is an ideal product for any kind advertisements. Wide application field: advertising LED display, stadium perimeter LED display, mobile led display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, stage performances and so on.
>> Features
1) Reliable quality, advanced and mature technology, compliant with industrial
standards and technology developing trend
2) Good heat emission, water proof and stable performance
3) Audio and video interface of the system can offer vivid, complete and high
quality LED display to TV broadcasting signal
4) High resolution and definition of screen image, clear and non-flash screen
5) Supports video and radio frequency input, special structure can be freely
assembled
6) Widely used in stadium, bank, restaurant, station, shopping center,
government, schools, entertainment, and enterprise
| Specification | PH14 | |
| 1 | Pitch | 14mm |
| 2 | Module Resolution | 16×8=128(dot) |
| 3 | Module Size | 224mm×112mm |
| 4 | Module Quantity/cabinet | 24(Pcs) |
| 5 | Cabinet Size | 896mm×672mm |
| 6 | Resolution/cabinet | 64×48(dot) |
| 7 | Density | 5102(dot/s.q.m) |
| 8 | LED Driving method | Constant driving / 1/2 Scan |
| 9 | LED Standard | DIP546 |
| 10 | Viewing Angle (H/V) | H:100±5°V:45° |
| 11 | Brightness | ≥7000CD/s.q.m |
| 12 | The Optimal viewing distance | 15-200m |
| 13 | Display Colors | 687(million) |
| 14 | Pixel configuration | 1R1G1B |
| 15 | Protection Degree | 65(IP) |
| 16 | Power | (Max.Consumption): True pixels:1000 W/s.q.m |
| (Average Power): True pixels:450 W/s.q.m | ||
| 17 | Control mode | Video Sync |
| 18 | Display Mode | (Max)1024×768/1280×1024 |
| 19 | LED Parametres | (R):λd (619~624nm)IV: (460~510mcd) |
| (G):λd (520~524.5nm)IV: (2000~2300mcd) | ||
| (B):λd (468.5~472.5nm)IV:(490~540mcd) | ||
| 20 | Rate | ≥300Hz |
| 21 | Communication | 1000M Cats(≤120M)/Fiber optical (10.000m) |
>> Product Advantages
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, Big viewing angle...
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
