High Resolution LED Display 2R1G1B P10 High Way LED screen Advertising Video board

Place of Origin Shenzhen ,China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Model Number DDW-OBP1002
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Plywood or Flight Case
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Tube Chip Color Full Color Cabinet Resolution(W×H) 96*96
Brightness ≥6500CD/ Module Size 160*160*30mm
Pitch size 10mm LED Standard DIP546
High Light

led billboard advertising


led digital billboard

Leave a Message
Product Description

High Resolution LED Display 2R1G1B P10 High Way LED screen Advertising Video board

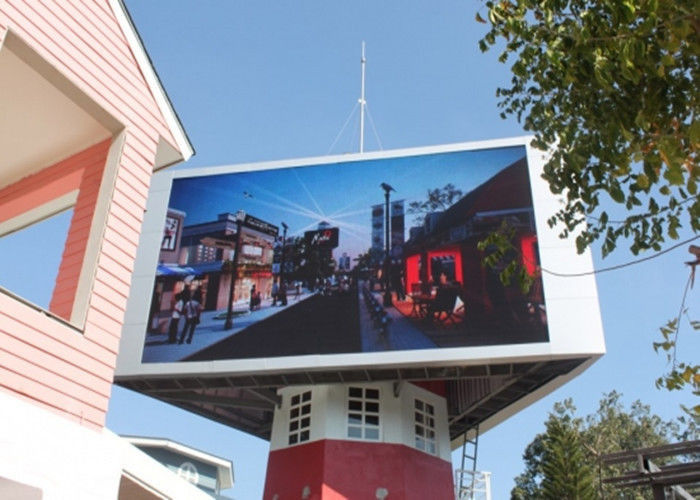

 High quality Full color LED pannel for outdoor usage, can be mounted on the building, on the top of the building, or located in the square with stand column, maximize your exposure, you wil be the envy of your neighbors.
 (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
 (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
 (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
 (4) Line-Double technology is adopted for the picture adjustment.
 (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
 (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

 >> Superiority

 1) LED display with high brightness, definition and durability
 2) Fast installation, easy to use, long lifetime and low power consumption
 3) Standardization productions, CE and RHOS approved, with strict QC
 4) Support one year limited hardware warranty; all broken parts caused by the
quality problem could be replaced by us free of charge.
 5)10years experienced manufacturer, attend many kinds of exhibition every year


Basic Parameter Pixel pitch (mm) 10
Pixel Configuration 1R1G1BDIP346
Pixel Density(dot/) 10000/
Module Resolution(W×H) 16*16
Module Size(mm) 160*160*30mm
Cabinet Resolution(W×H) 96*96
Cabinet Size(mm) 960*960*80mm
Lighting Parameter Unit brightness, chroma adjust yes
Brightness ≥6500CD/
Gray scale RGB12-16BitsEach
Color temperature (K) 6500~9500Adjustable
Horizontal / Vertical Viewing Angle (°) 110/55
Control system parameter Scanning mode Dynamic
Frame Frequency (Hz) ≥60
Refresh Frequency (Hz) 200-2000
Operating Characteristic Max Power Consumption (W/m2) ≤600W/
Average Power Consumption (W/m2) ≤300W/
IP Rating Front IP 65,Back IP 55
Life Span (hrs) ≥100,000
Power supply requirement AC:220×(1±10%)V,50×(1±5%)Hz
Temperature Range (℃) -20~50
Humidity Range (RH) 10%~90%, Nocondensation


 >> Advantage
 1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
 2. Nice appearance and simple structures.
 3. Jointed correctly, being installed & dismounted by one person without tool.
 4. Humanized operating interface with breakdown indicator lights, easy to maintain.
 5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
