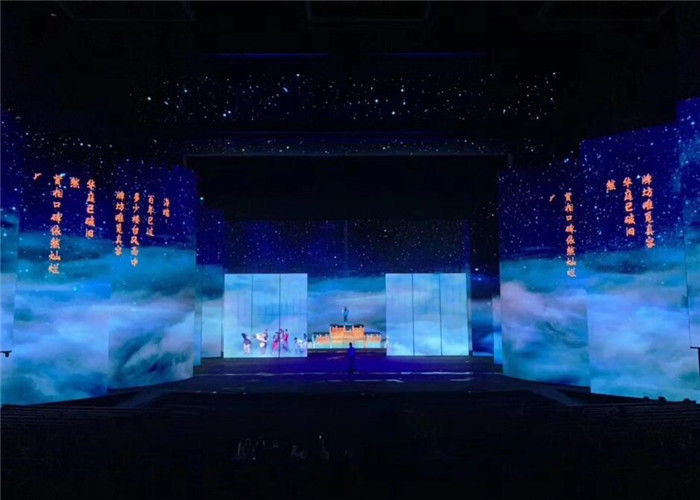

Live Event Indoor Full Color LED Display SMD3528 Epistar Energy Saving IP65

Live Event Indoor Full Color LED Display SMD3528 Epistar Energy Saving IP65

  • High Light

    indoor led display board

    ,

    indoor fixed led display

  • Tube Chip Color
    Full Color
  • Protection Leve
    IP65
  • Brightness
    ≥1200cd/sqm
  • Pitch size
    10mm
  • Module size
    320mm*160mm
  • View angle(H/V)
    120/60degree
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-IFCP1000
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

Live Event Indoor Full Color LED Display SMD3528 Epistar Energy Saving IP65


Live Event Indoor Full Color LED Display SMD3528 Epistar Energy Saving IP65



 >> Application



 1) With good lightening accordance and no mosaic

 2) Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

 3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

 4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

 5) Uses real pixels rather than virtual pixels, better viewing effect



Pitch size 10mm
Module size 320mm*160mm
Panel pixel(dots) 32*16
Pixel configuration 1Red,1Green,1Blue(SMD 3-in-1)
LED chip Epistar
Color scale 256-65536grade/10.74 billion colors
Pixel density 10000/square meter
View angle(H/V) 120/60degree
Brightness ≥1200cd/sqm
View distance 5-300m
Power consumption 100-1500W/sqm
Operating temperature from —25°C to +60°C
Operating humidity 10%--95%RH
Life time 100,000hours
Frame speed >150frames per second
Refresh frequency 1000Hz
Control distance 100m (without relay),single mode fiber:
20000m,multi mode fiber:500m
Power 110V/220V/380V±15% 50Hz
operating system Windows98/Me/2000/Xp
Drive mode constant current driving
display mode VGA640X480—VGA1600X1024
IP Grade IP54



 >> Advantage



 1) LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.



 2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.



 3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.



 4) Connector: Aerial grade brands ensure the stable transmission of power and signal.



 5) PCB Board: adopt 4-layer design.



 6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.
