Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-IFCP6001
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Protection Leve: |
IP65 |
Brightness: |
2000 Nits |
Pitch size: |
6mm |
Cabinet Weight: |
19kg |
Pixel Type And Configuration: |
1R1G1B |
Tube Chip Color: |
Full Color |
Protection Leve: |
IP65 |
Brightness: |
2000 Nits |
Pitch size: |
6mm |
Cabinet Weight: |
19kg |
Pixel Type And Configuration: |
1R1G1B |

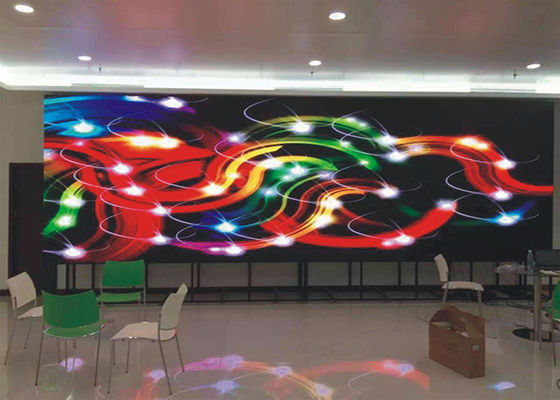

Pixel Pitch 6mm Indoor Full Color LED Display Panel Church Video Wall 1R1G1B
>> Indoor Led Display Characteristics
1. easily upgrade size of sign
2. user friendly computer system .
3. approximate 3D image quality
4. Fast and easy to assemble and dismantle.
5. Wide viewing angle ,excellent white color balance
6. High grayscale (15 bits) with perfect visual performance
7. High reliability and long lifespan (MTBF ≥ 10000 hours).
Indoor full color LED display have many specifications, like:φ3.0,φ3.75, φ5.0,P4,P5,P6,P7.62,P8,P10. And the P6,P7.62 ,P10 are the most used among them. Indoor LED display can be used in the lobby ,foyer,meeting room, etc.
>> Specifications
| Parameter | Unit | Value |
| Pixel pitch | mm | 6 |
| Panel brightness | nit | 2000 |
| Viewing angle - Horizontal | deg. | 140 |
| Viewing angle - Vertical | deg. | 140 |
| Cabinet Weight | kg | 19 |
| Cabinet Width | mm | 1024 |
| Cabinet height | mm | 768 |
| Cabinet depth | mm | 185 |
| Cabinet area | sq. m. | 0.79 |
| Cabinet material | Aluminium | |
| Aspect ratio | 6:5 | |
| Ingress Protection (Front/Rear) | IP | IP65/IP21 |
| Operating temperature range | deg. C | -20 to 50 |
| Operating Humidity range | HR | 10% to 90% |
| Pixel type and configuration | R/G/B | 1,1,1 |
| Pixel pitch | mm | 10.667 |
| Pixel matrix per cabinet | 96*72 | |
| Pixels per cabinet | 6912 | |
| Lines per meter | 94 | |
| Pixels per sq. meter | 8789 | |
| LEDs per sq. meter | 26367 | |
| Recommended minimum viewing distance | m | 11 |
| Colours | 1.07Billion | |
| Gray scale | Levels | 1024 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 10 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | ≥400 |
| Scan mode | Static | |
| Input voltage | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 or 60 |
| Input power (max/avg) | Watts per sq.m | 600/250 |
>> Advantage
1. Using DIP technology make the screen have a excellent effect when it plays .
2. The cabinet become more firmed , and corrosion-resistant .
3. synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance;
4. high contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon;
5. compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.;
