IP65 SMD Indoor Led Billboard Tri In One Full Color Led Wall 140° View Angle

IP65 SMD Indoor Led Billboard Tri In One Full Color Led Wall 140° View Angle

    • IP65 SMD Indoor Led Billboard Tri In One Full Color Led Wall 140° View Angle
    • IP65 SMD Indoor Led Billboard Tri In One Full Color Led Wall 140° View Angle
  • IP65 SMD Indoor Led Billboard Tri In One Full Color Led Wall 140° View Angle

    Product Details:

    Place of Origin: Shenzhen ,China
    Brand Name: DDW
    Certification: CE/ROHS/FCC/UL/ISO/3C
    Model Number: DDW-IFCP1200

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Plywood or Flight Case
    Delivery Time: 7-20 days
    Payment Terms: Bank T/T transfer, Western Union
    Supply Ability: 6000sqm/month
    Contact Now
    Detailed Product Description
    Tube Chip Color: Full Color Protection Leve: IP65
    Brightness: ≥900cd/m² Module size: 192×192
    View Angle, 50% Brightness: 140°/140° Pixel Type And Configuration: 1R1G1B
    High Light:

    indoor led display board

    ,

    indoor full color led screen


    IP65 SMD Indoor Led Billboard Tri In One Full Color Led Wall 140° View Angle

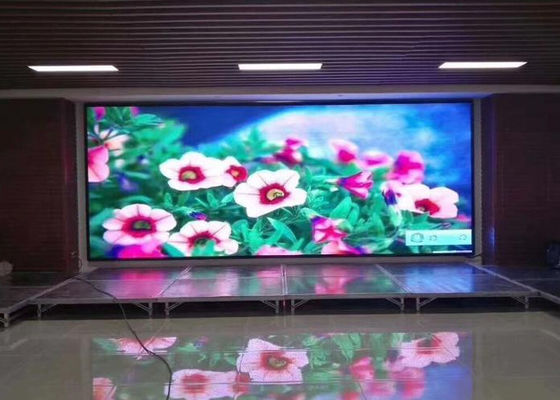

     Indoor LED Display is a kind of SMD 3in1 indoor full color LED display. It is specially designed for the indoor High Definition shows. LED lamp adopts standard 3in1 SMD technology. Every light unit is composed by red, green and blue color so the colors of the display can reach 1.07 billion kinds.



     The indoor LED display can display colorful dynamic and static images in real time with perfect display effect. Thus, this LED display is the most significant display in all indoor full color screens.



     The LED display supports usual VGA and DVI tradational video signal, also specially supports HDMI video signal and so on. In addition, it can receive and display video programs, such as TV programs, VCD or DVD, living show etc.



     The products has high reliability, saturated and uniform color, hight brightness, low consumption, long service life and with wide angel sight. So the SMD full-color 3 in 1 indoor LED display is widely used in many indoor sites, such as show rooms, coffee house, hotel, stage and so on.



     >> Features



     1. Modular design Guarantee high overall system availability and easy maintenance.

     2. Designed for reliable operation in video play and live broadcast applications. Best possible adaptation to local display needs.

     3. Ambient light control Extended display lifetime by automatic adjustment of brightness depending on the actual ambient light conditions.

     4. Using SMT or AI automatic production line It reduces manufacturing variation and improves product performance.

     5. Good uniformity and consistency It provides for amazingly sharp, vivid and clear images.



     >> Specification and Parameter



    Pixel Pitch 12mm
    Physical Density(pixels/m²) 6944
    LED Shape & Size SMD 3 in 1
    LED Arrangement 1R1G1B
    Module Size(mm) 192×192
    Module Resolution 16*16
    Drive Mode Dynamic 1/4 Duty Constant Current
    Brightness ≥900cd/m²
    Contrast(cd/m²) ≥2000:1
    View Angle, 50% Brightness 140°/140°
    Minimum View Distance 12m
    Grey Scale 10bits/1024levels
    Color Capacity 1.07billion
    Maximum Power Consumption 650W/m²
    Ave.Power Consumption 210W/m²
    Operation Power Source AC90-260V 50-60HZ
    Frame Frequency 60-85HZ
    Refresh Rate 240-1000HZ
    Brightness Adjustment 0-100% 8 levels automatic
    Gamma Correction -5.0-5.0
    Correction Scale Level 16bits
    Color Temperature 5000-9300K
    Brightness Correction Pixels, Module, Cabinet Correction
    Input Source Support Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
    Control Distance UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
    Operating Temperature -40°C - 65°C
    Operating Humidity 10-90%RH
    Operating Life Span 100,000Hours
    MTBF 5000 Hours



    IP65 SMD Indoor Led Billboard Tri In One Full Color Led Wall 140° View Angle 0
