Shenzhen DDW Technology Co., Ltd. info@ddwled.com 86-180-07555858
Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-IFCP4804
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Protection Leve: |
IP65 |
Brightness: |
≥900nits |
Pitch size: |
4.8mm |
Module size: |
250*250mm |
Cabinet Weight: |
6.5kg/pc |
Tube Chip Color: |
Full Color |
Protection Leve: |
IP65 |
Brightness: |
≥900nits |
Pitch size: |
4.8mm |
Module size: |
250*250mm |
Cabinet Weight: |
6.5kg/pc |

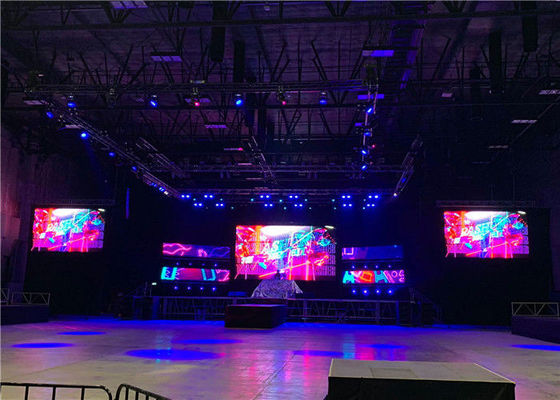

Commercial Indoor Full Color LED Display Video Wall P4.8 For Rental Lightweight
>> Features
1. Light weight,slim body,easy and fast inatallation,flexible ,waterproof and high brightness, suitable for flow shows, convenient in transporting and replace
2. Nice appearance and secure.
3. Easy installation, could be dismounted by one person without tool
4. High transparency. Light, air and frost could easily cross through it.
5. Humanized operating interface with breakdown indicator lights.
| Item | Specification |
| Pixel Pitch | 4.8mm |
| Pixel Density | 43264dos/sqm |
| LED Package | Black SMD2121 |
| Module Size | 250*250mm |
| Module Resolution | 52*52dots |
| Cabinet Size | 500*500mm |
| Cabinet Resolution | 104*104dot |
| Cabinet Materials | Die Casting Aluminum |
| Cabinet Wegiht | 6.5kg/pc |
| Brightness | ≥900nits |
| Driving Mode | 1/16 scan |
| Refresh Rate | ≥1920hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/140° |
| Viewing Distance | 4-100m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Working Temperature | -20℃ - +60℃ |
| Installation Way | Curved Installation/Hanging/Fixed/Lifting |
| MTBF | 5000H |
| Life Span | >100,000 Hours |
| Control System | Linsn Novastar Colorlight optional |
>> Description
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7.Energy-saving 60%:driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
8 .Life time >10 years
Our company pay more attention to After-sales services
1. We will provide full-set documents, like technical document, equipment documents and maintain instruction
2. Welcome engineers from customers to our company, we will provide training, which includes display and control system operation, an example for creat programme, simulation teaching, led display maintaining and troubleshooting,
3. We provide services about software controlling and displaying
4. One years warranty
