IP3X 1R1G1B SMD2020 75mm Indoor Led Panel Module

Product Details

Place of Origin: China

Brand Name: DDW

Certification: CE/ROHS/FCC/UL/ISO/3C

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Delivery Time: 7-20 days

Payment Terms: Bank T/T transfer, Western Union

Supply Ability: 6000sqm/month

Get Best Price
Product Details
Highlight:

SMD2020 Indoor Led Panel Module

,

75mm Indoor Led Panel Module

,

IP3X Full Color LED Display

Material:
Aluminum Die-casting
Panel Size:
500*500*75mm
Panel Weight:
8kg
Module Size:
250*250mm
Grayscale:
65536level
LED Configuration:
1R1G1B SMD2121
IP Rating:
IP31
Warranty:
2 Years
Material:
Aluminum Die-casting
Panel Size:
500*500*75mm
Panel Weight:
8kg
Module Size:
250*250mm
Grayscale:
65536level
LED Configuration:
1R1G1B SMD2121
IP Rating:
IP31
Warranty:
2 Years
Product Description

Ultra Thin 1R1G1B SMD2020 75mm Indoor Full Color LED Display Led Panel Module



Technicals



Item Indoor
Fantasy Series 3.91mm 4.81mm 5.682mm 6.25mm
LED Configuration 1R1G1B SMD2020 Black 1R1G1B SMD2020 1R1G1B SMD3528 1R1G1B SMD3528
Module Size 250mm*250mm 250mm*250mm 250mm*250mm 250mm*250mm
Module resolution 64*64dots 52*52dots 44*44dots 40*40dots
Pixel Density 65536picels/m2 43264picels/m2 30976picels/m2 25600picels/m2
Brightness ≧1200cd/m2 ≧1200cd/m2 ≧1200cd/m2 ≧1500cd/m2
Panel Resolution 128*128dots 104*104dots 88*88dots 80*80dots
Power Consumption

Avg:105w/panel

Max:300w/panel

Avg:105w/panel

Max:300w/panel

Avg:105w/panel

Max:300w/panel

Avg:105w/panel

Max:300w/panel

Driving Mode 1/16 1/13 1/11 1/10
Material Aluminum Die-casting
Refresh Rate 2880HZ
Gray Scale 65536level
Viewing Angle(H/V) 140°/140°
Panel Size/Weight 500*500*75mm/8kg
IP Rating IP3X
Operating Temperature -20℃-60℃
Operating Humidity 10%-90%RH
Lifespan 10000hrs at 50% brightness
Control System Novastar/Linsn





More pictures show the product details



Side lock make the assemble and dismantle more convenient

Label shows the basic product information

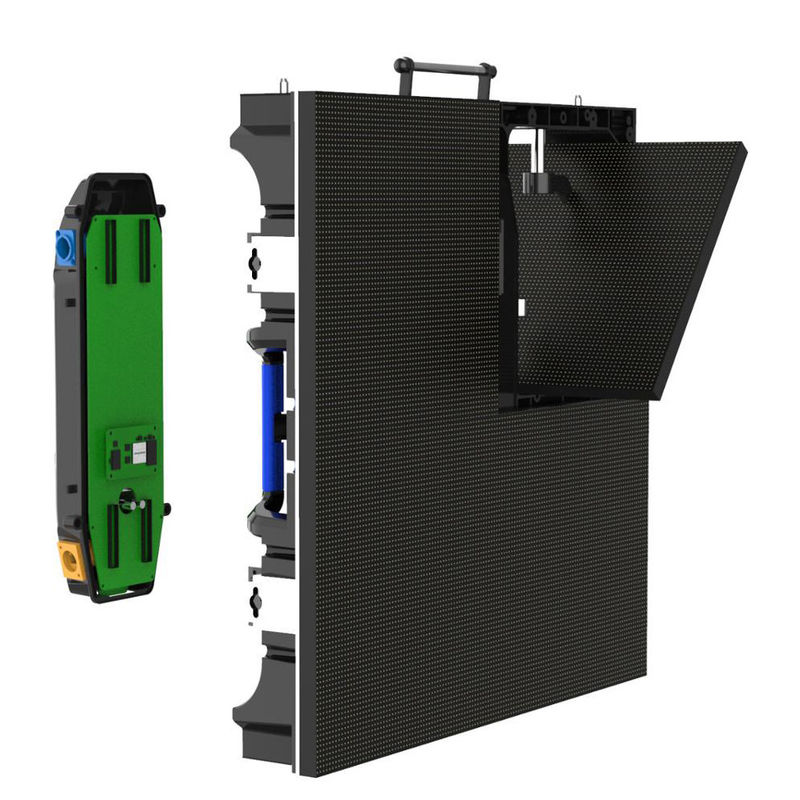

IP3X 1R1G1B SMD2020 75mm Indoor Led Panel Module 0



Application



1. Light weight and small size: each cabinet size only 640mm*640mm*97mm, weight 13kg, frame 55mm.

2. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.

3. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.

4. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.

5. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.

6. Both indoor and outdoor series are compatible, outdoor SMD and DIP screen with IP65 weatherproof level, so it can be used normally in rainy days.

7. Floor led screen can bear 1 ton weight, IP65 weatherproof level.

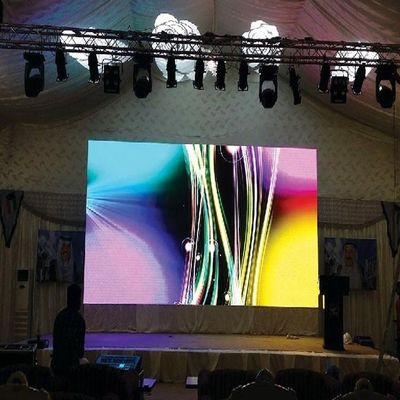

This model are widely used in stage events,TV stations,concerts,and expo events,conferences,live bars,etc.Following image give you a view.Quality is good and the price is moderate,why not try this for your current or future projects?I believe youll receive the most satisfactory goods.

IP3X 1R1G1B SMD2020 75mm Indoor Led Panel Module 1
