Full Color 6000nits SMD2121 6mm Pixel Outdoor Led Module

Place of Origin China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Minimum Order Quantity Negotiable
Price Negotiable
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Panel Material Aluminum Panel Size 960*768mm
Minimum Viewing Distance 6m Brightness 6000nits
Grayscale 65536level LED Configuration 1R1G1B SMD2121
IP Rating IP31 Warranty 2 Years
High Light

6mm Pixel Outdoor Led Module

,

SMD2121 Outdoor Led Module

,

6000nits Full Color LED Screen

Leave a Message
Product Description

P6 Outdoor Led Module Indoor Cabinet Full Color LED Display Shopping Window display



Main Features



1. High Brightness reach 6000nits as it used as the window shop,can cope with direct sunlight.



2. Indoor Cabinet as it used in indoor shop can reduce the frame cost.



3. High resolution even you stand at 6m,the video and image shows vividly.



4. 2 years warranty and free replacement.

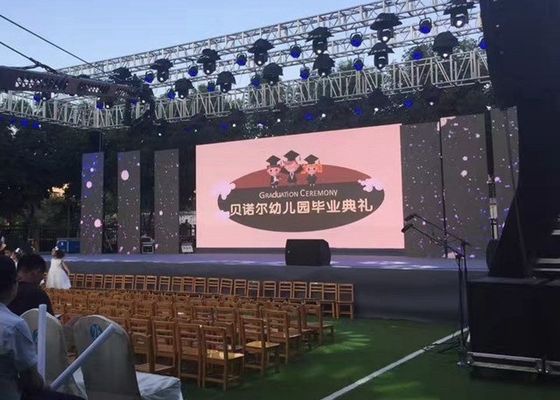

Application



France area:3.072X1.728m Cabinet Size:960*768mm 4pcs 768*768m 4pcs

Full Color 6000nits SMD2121 6mm Pixel Outdoor Led Module 0



Specification

Items Parameters
Model Number NS-OR-DS-P6
Pixel Pitch 6mm
Pixel Density/m2 27,777dots
Module Size 192*96mm
Module Resolution 32*16dots
Panel Dimension 960*768mm/768*768mm
Panel Resolution 160*128dots/128*128dots
Refresh Rate >1200Hz
LED configuration 1R1G1B SMD3535
Brightness >6000cd/m2
Power Consumption Avg.:1000W/Panel



Description



Brightness adjustment: Software allows continuous adjustment

from 0% to 100% according to environmental brightness.

Drive method: Constant current driving

Input signal: Video-video signal-RGB digital signal, etc.

Working voltage: AC220V+/-10%, 50Hz, or AC110V+/-10%,60Hz

Working temperature: -20 C° ~ +50C°

Storage temperature: -30 C° ~ +90C°

Ambient relative humidity: 25% ~ 95% RH

Communication distance: Network cable: 120m, multi mode fibre

cable: 500m, single mode fibre

cable: 15km

Screen life: 50,000 hours
