P6 SMD3528 1500nits Permanent LED Display 960X768mm

Place of Origin China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Minimum Order Quantity Negotiable
Price Negotiable
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Cabinet Size 960X768mm Material Iron
LED SMD3528 1R1G1B Module Size 192X96mm
Minimum Viewing Distance 5m Service Back
High Light

1500nits Permanent LED Display

,

SMD3528 Permanent LED Display

,

960X768mm Indoor Advertising Led Display

Leave a Message
Product Description

High Definition P6 permanent Indoor Full Color LED Display 960X768mm Back Service





Application



DDW high definition indoor LED screen enables to bring smooth and high quality pictures.It can be used for many situations like meeting room,cinema,airport,shopping mall,swimming pool,etc.Front Maintenance is available.





Technical Data



Model No. DDW
Pixel Pitch 6mm
Pixel Density/M2 27,777
LED Configuration 1R1G1B SMD3528
Module Size 192X96mm
Module Resolution 32X16dot
Cabinet Size 960X768mm
Cabinet Resolution 160X128dot
Minimum Viewing Distance 5m
Driving Mode 1/8
Refresh Rate >1000Hz
Brightnes >1500nits
Power Consumption 350W/Panel
Gray level(colors) 16.7billion
Viewing Angle(H/V) 140°/140º
Lifespan 100,000hrs
Operating Temperature -20℃–+60℃
IP Rating IP31
Control System Novastar

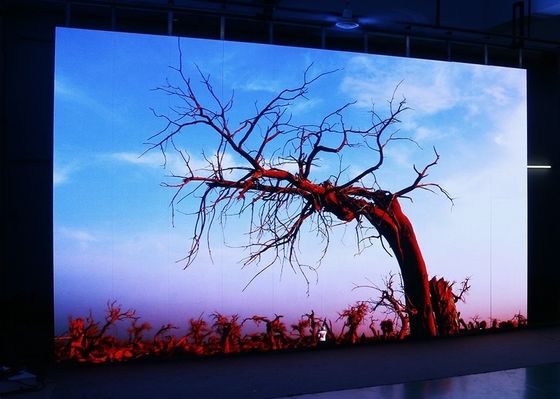

P6 SMD3528 1500nits Permanent LED Display 960X768mm 0



Product Back View



P6 SMD3528 1500nits Permanent LED Display 960X768mm 1






Indoor 2.5mm,3mm,4mm,5mm,7.62mm,8mm,10mm is available.
