Shenzhen DDW Technology Co., Ltd. info@ddwled.com 86-180-07555858
Product Details
Place of Origin: China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Material: |
Aluminum Die-casting |
Module Size: |
250*250mm |
Panel Size: |
500*500*75mm |
Grayscale: |
65536level |
Lifespan: |
100000hrs At 50%brightness |
Service: |
Back |
Material: |
Aluminum Die-casting |
Module Size: |
250*250mm |
Panel Size: |
500*500*75mm |
Grayscale: |
65536level |
Lifespan: |
100000hrs At 50%brightness |
Service: |
Back |

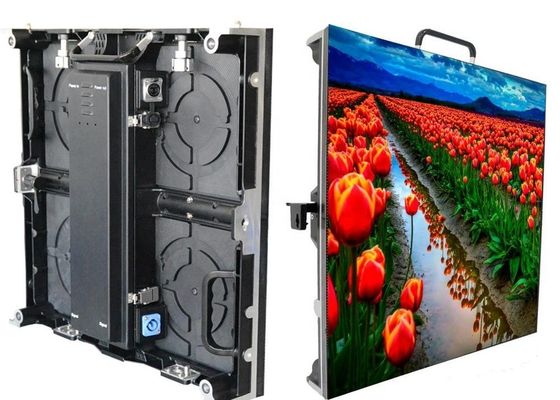

SMD2727 P5 Indoor Full Color LED Display No Air Conditioning 2880~3840Hz Refresh
Product Specification:
| Unit Module | Item | Energy-saving | General |
| Model Number | SC-P5(2727)-64*32-2L8S-V1.6 | SC-P5(2727)-64*32-2L8S-V1.6 | |
| module size | 320x160mm | 320x160mm | |
| pixel pitch | 5mm | 5mm | |
| Pixel density | 40000dots/㎡ | 40000dots/㎡ | |
| Pixel configuration | 1R1G1B | 1R1G1B | |
| Encapsulation of led | SMD2727RS | SMD2727RS | |
| Mudule Max Power consumption | 26W | 35W | |
| Mudule Display Resolution | 64DOTS(W) * 32DOTS(H) | 64DOTS(W) * 32DOTS(H) | |
| Thickness of a mudule | 16mm | 16mm | |
| Weight of a mudule | 0.58kgs | 0.58kgs | |
| Drive Type | Constant drive (SUM2028) | Constant drive (SUM2016) | |
| driving mode | 1/8 scan | 1/8 scan | |
| HUB type | HUB75 | HUB75 | |
| brightness of white balance | ≥5500~6000cd/㎡ | ≥5500~6000cd/㎡ | |
| LED Cabinet | Diecast cabinets size | 960x960mm | 960x960mm |
| Module quantity per cabinet | 18pcs | 18pcs | |
| Power supply | 3.8 V/40A*3pcs | 5V V/60A*3pcs | |
| Maintenance mode | back maintenance | back maintenance | |
| Thermal discharge | fan 2pcs | fan 2pcs | |
| Cabinets Display Resolution | 96*96DOTS | 96*96DOTS | |
| The best viewing distance | 4M~10M | 4M~10M | |
| The best viewing angle | H:110° / W:110° | H:110° / W:110° | |
| Environment temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Operating humidity | 10-95% Relative humidity | 10-95% Relative humidity | |
| temperature | 100mm | 100mm | |
| Power | operating power | AC220V±10% | AC220V±10% |
| Average Power consumption | 165W/㎡ | 325W/㎡ | |
| Max.Power consumption | 494W/㎡ | 925W/㎡ | |
| Current | ≤20mA(single LED) | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | WIN98/2000/NT/XP/WIN7 | |
| Control method | synchronization | synchronization | |
| Main Technical parameter | Driving device | Constant drive IC | Constant drive IC |
| Refresh frequency | ≥1920Hz | ≥1920Hz | |
| Grey scale/colors | 4096 level/16.7M colors | 4096 level/16.7M colors | |
| lifespan | ≥100000Hours | ≥100000Hours | |
| Power switch | Automatic switch | Automatic switch |
Product Advantages
1.320*160mm standard module ,CNC finishing 960*960mm magnesium aluminum cabinet is 22kg/㎡ lighter than traditional iron cabinet , 8kg/㎡ lighter than die-casting aluminum ,Greatly reduce the installation structure cost. Magnesium-aluminum cabinet stitching is more higher and beautiful .
2.High brightness and low power consumption , better meeting the high reliability requirement for outdoor use.
3.Fully sealed magnesium-aluminum cabinet design, waterproof , dustproof, anti-corrosive, flame retardant ,UV resistant ,protection class up to IP65.
4. 2880~3840 High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
5.3.8V low-voltage power supply, with high-efficiency energy-saving drive IC, unique energy-saving technology design , saving about 70% , greatly reducing the display failure rate .
6.The new system integrates energy-saving design , low power consumption , low heat , low loss and automatic brightness control , which effectively reduces display failure rate and extends display life.
Application:
1.SOL-COLUR has been leading the development of the LED industry during the process of continuous innovation , With its unique technical advantages and strong production capacity , the products are well received by the market and use widely.
2.We established numerous classic cases in the outdoor advertising media , information display , image landmarks , stadiums, commercial real real estate, intelligent transportation, smart light poles , outdoor advertising machines, creative display and other commercial market areas .
Instation:
