Product Details
Place of Origin: China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Pixel Pitch: |
5.92mm |
Module Size: |
320x160mm |
Average Power Consumption: |
200W/㎡ |
Grayscale: |
65536level |
Lifespan: |
100000hrs At 50%brightness |
Service: |
Back |
Pixel Pitch: |
5.92mm |
Module Size: |
320x160mm |
Average Power Consumption: |
200W/㎡ |
Grayscale: |
65536level |
Lifespan: |
100000hrs At 50%brightness |
Service: |
Back |
P5.9259 SMD Led Wall Display Screen Module Size 320x160mm 3840Hz Refresh Frequency
Features & Technical Specification:
The list of available Models of our LED display/screen/panel/sign
PH4mm,5mm,6mm,7.62mm,8mm,10mm,12mm,12.5mm,14mm,16mm,18mm,20mm,25mm,31.25mm 37.5mm.
1. Wide application field & short ROI time:
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness:
7000-nit brightness (for outdoor full color)(2000 nits brightness for indoor full color ) capacity throughout product lifetime of the LED display screen.
5. Easy Installation & Using:
easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6. Convenient Servicing:
Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Specifications:
| Product model number | Mled-PH4-1 |
| 1.Pixel | |
| Pixel L ED | 2121 |
| Pixel Configuration | 1 R, 1G , 1B |
| Wave length ( nm ) | R: 626-628 , G: 518-520 , B: 466-468 |
| Pixels Pitch ( mm ) | 4 |
| 2 . Module | |
| Module Size ( mm ) | 128 * 256 * 20 |
| Module Pixels (dot) | 32 * 64 |
| 3.Unit box | |
| Module quantities in a unit box | 2 (L) * 4 ( H ) |
| Unit box size (mm ) | 512 (L) * 512 (H) * 80 |
| Unit box Pixels ( dot ) | 128 * 128 |
| Unit box material | Aluminum |
| Unit box weight (kg) | Aluminum : 10 |
| 4.Packaging | |
| Packing Way | Two unit boxes packed into one |
| Packing box material | Wooden case or Flight box |
| 5.electricity parameter | |
| Pixel density (dots/ m 2 ) | 62500 |
| White Balance Brightness ( cd/m 2 ) | ≥ 1500 |
| Color temperature ( K ) | 5000-9500 (choice by user) |
| Brightness Adjusted | 100 grade by software or by Auto-optic induced. |
| View Angel | Horizontal 120 ° ; Vertical 120 ° |
| Best viewing distance ( m ) | 16-150 |
| Communication distance ( m ) | Internet Wire : 120 Fiber Cable : 1000 |
| Screen work Method | 1/32 scan |
| LED driving method | Constant driving current |
| Gray Grades | 16384 levels for each color |
| Display Color | 4 , 398 , 046 , 511 , 104 |
| Refresh Frequency ( Hz ) | ≥2000 |
| Picture display method | Dots to dots display synchronized with CRT |
| Signal interface | DVI |
| Input signal | Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV |
| Display format | 800 * 600 , 1024 * 768 , 1280 * 1024 |
| Software | Support windows series system |
| Protection grades | IP 21 |
| Working temperature (ºC ) | -20 +60 |
| Humidity ( RH ) | Up to 95 |
| Stored temperature ( ºC) | -30 +70 |
| Screen Lifetime(hours) | ≥100, 000 |
| Out of controlled dots | ≤3/10, 000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
| Whole display flatnes | Less than 1mm Juncture |
| Maintance way | Back-maintained or front-maintained, modules displaced |
| Switch power supply | Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ , 220V/50HZ |
| Power Consumption ( w /m 2 ) | Max : 600 , Average: ≥ 300 |

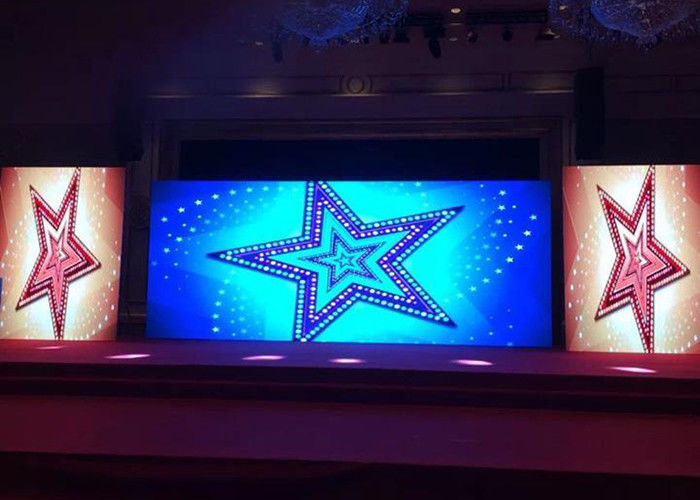

Project Case:
