14m View 8000nit Outdoor Led Display P16 Exterior LED Screen

14m View 8000nit Outdoor Led Display P16 Exterior LED Screen

  • High Light

    14m View Outdoor Led Display

    ,

    8000nit Outdoor Led Display

    ,

    P16 Exterior LED Screen

  • Module size
    256*256mm Or 320*320mm
  • Viewing Distance
    >14m
  • Brightness
    >7000nit
  • Pixel Pitch
    16mm
  • Wave Angle (H)
    120°/90°
  • Working Temp
    -20°C To +60°C
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-OFCP1610
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

14m View 8000nit Outdoor Led Display P16 Exterior LED Screen

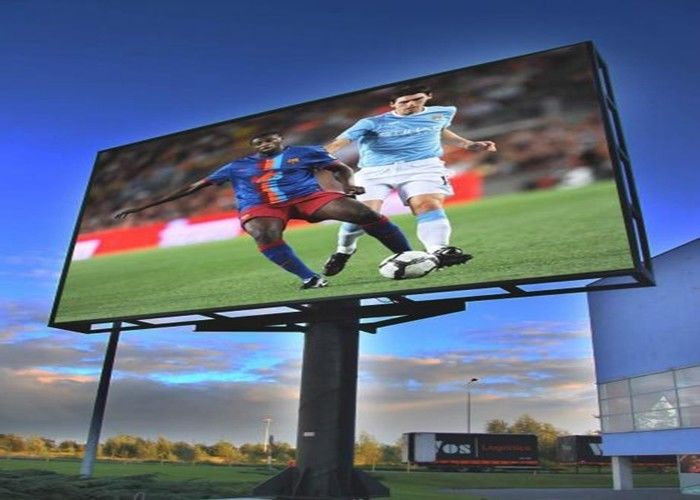

Large Outdoor Led Display Screens 8000nit , Weatherproof P16 Exterior LED Screen



 The p16 LED Display has the advantage of excellent flatness, super uniform color, brightness and long viewing distance. it is widely used on street, building, supermarket, entertainment place, and sports field, live show stage, meeting room, airport, hotel and many other places for advertising and other usage.



 >> Features of the outdoor LED Display

 * Weatherproof to IP65 standards
 * High resolution images and long lifetime
 * Easily configured for various size and aspect ratios
 * Wide viewing angle
 * Brightness from 6000 nits onwards



 >> Specifications of outdoor P16 led display



model P16









Pixel unit module

Pixel pitch 16mm
Pixel density 3906dots/m²
Pixel configuration 1R1G1B or 2R1G1B
LED type DIP346 or DIP 546
Module size 256*256mm or 320*320mm
LED parameters

R:625nm±5.0nm

IV:400-500mcd

R:52nm±2.5nm

IV:1,800-2,200mcd

R:470nm±2.5nm

IV:350mcd-450mcd





Pixel unit screen

Screen size based on customer need (mm)
Module resolution 16*18dots or 20*20dots
Cabinet structure Water-proof
Screen material Iron or aluminum
Protect degree IP65





Display parameters

Viewing distance >14m
Brightness >7000nit
Power consumption Max power consumption 1000w/m²
Average power 350w/m²
Driving IC static, constant current
Refresh rate ≥3000HZ
Viewing angel 120°/90°
System working voltage AC 110/220V











Other parameter

Working temp -20°C to +60°C
Working humidity 10% ~ 90%
MTBF >5,000hous
Gray level RGB/8192/14bit
Life span >100,000hours
Signal input RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control system Sending card + Receiving card + Hub card +PCTV Non-liner card + Muti-funcational card(Optional) + Video processor(Optional) + Fiber Transmitter (Optional)
Color temperature/contrast Brightness and contrast of red, green and blue can be adjusted by software.
Image processing Video denoising, rapid motion compensation, edge sharpening, edge smoothing
Color coordinate conversation & control, grey scale transformation etc


 >> Feature


 1. Enhanced image quality. Incorporating BENE cutting edge technology LED displays ensure perfect video and graphics performance with great color depth and uniformity across the entire surface of the screen.



 2. Wide viewing angle. Perfect BENE design and high quality LEDs provide a viewing angle of more than 120° (min. 50% brightness).



 3. Full protection and reliability. BENE outdoor video displays are fully protected from water and dust in accordance with IP65 classification.
