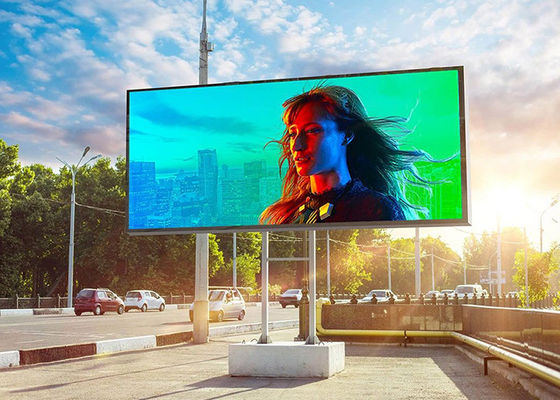

P4 P5 P6.6 P8 P10 Outdoor Waterproof Full Color Size Wall-mounted Fixed Commercial Advertising Led Display
>> Features
– IP65 waterproof rating, long service life
– High brightness, bright colors
– Any size, seamless stitching
– Simple internal connection and easy installation
|
Model
|
2.5
|
P3
|
P4
|
P5
|
P6
|
P8
|
P10
|
|

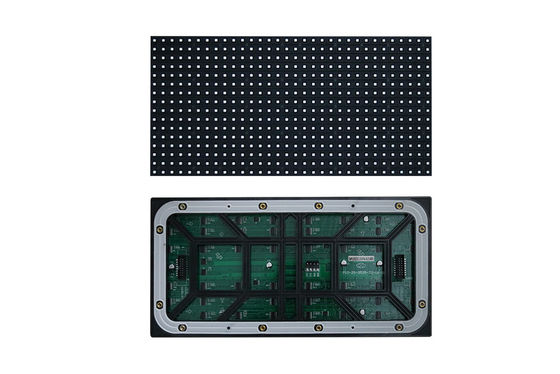

Module size(mm)
|
192x192
|
192x192
|
320x160
|
320x160
|
192x192
|
320x160
|
320x160
|
|
Module resolution (dot)
|
64x64
|
64x64
|
80x40
|
64x32
|
32x32
|
40x20
|
32x16
|
|
Scanning
|
1/16S
|
1/16S
|
1/20S
|
1/8S
|
1/8S
|
1/5S
|
1/2S
|
|
SMD
|
1G1R1B
|
1G1R1B
|
1G1R1B
|
1G1R1B
|
1G1R1B
|
1G1R1B
|
1G1R1B
|
|
Maintenance
|
Back
|
Back
|
Back
|
Back
|
Back
|
Back
|
Back
|
|
Installation
|
Back
|
Back
|
Back
|
Back
|
Back
|
Back
|
Back
|
|

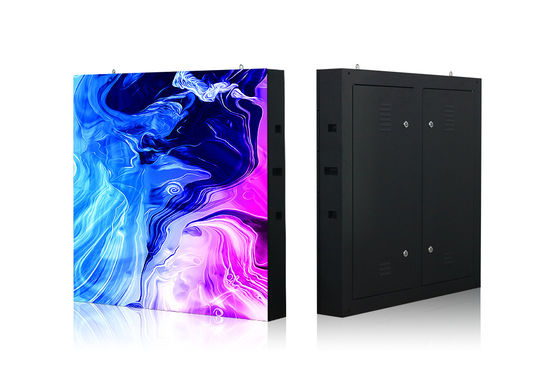

Cabinet size(mm)
|
960x960
|
960x960
|
960x960
|
960x960
|
960x960
|
960x960
|
960x960
|
|
Density(dot/㎡)
|
111111
|
111111
|
62500
|
40000
|
27777
|
15625
|
10000
|
|
Brightness(cd/㎡)
|
4200-4500
|
4200-4500
|
5000-6500
|
5000-6000
|
5000-6000
|
4000-5000
|
6000-7500
|
|
Max. Power Consumption
|
1000
|
1000
|
900
|
800
|
800
|
800
|
1000
|
|
Average Power Consumption
|
350
|
350
|
300
|
400
|
300
|
300
|
500
|
|
Cabinet weight (kg/m²)
|
40kg
|
40kg
|
40kg
|
40kg
|
40kg
|
40kg
|
40kg
|
|
Cabinet material
|
Iron
|
Iron
|
Iron
|
Iron
|
Iron
|
Iron
|
Iron
|
|
IP rate
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
|
Grayscale
|
10000:1
|
10000:1
|
10000:1
|
10000:1
|
10000:1
|
10000:1
|
10000:1
|
|
Refresh rate(hz)
|
1920-3840
|
1920-3840
|
1920-3840
|
1920-3840
|
1920-3840
|
1920-3840
|
1920-3840
|
|
Frame change frequency
|
50/60hz
|
50/60hz
|
50/60hz
|
50/60hz
|
50/60hz
|
50/60hz
|
50/60hz
|
|
Horizontal viewing angle
|
>140°
|
>140°
|
>140°
|
>140°
|
>140°
|
>140°
|
>140°
|
