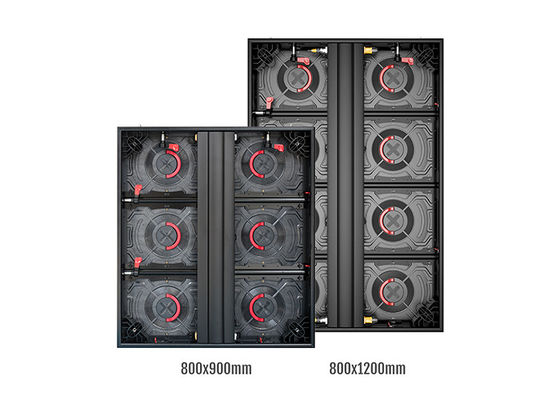

Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display

Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display

Products - Outdoor LED Billboard
  • SMD type
    SMD1921/SMD2727
  • Module dimension
    400X300
  • Panel size
    800X1200
  • Brightness
    6500cd/m²
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-LEDFE
  • Minimum Order Quantity
    1~10
  • Packaging Details
    Quality carton with full wood box packing/Flight case
  • Delivery Time
    7-20 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display

  • Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display
  • Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display
  • Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display
Get Price Contact Now

Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display 0

MAXIMUM DEFINITION AND HIGH PERFORMANCE
Led displays provide a sharp, bright and clear image
in certain distances; guaranteeing a low energy
consumption.
ADAPTABLE TO ANY SPACE
The modular panel system allows you
to create unique displays and experiences
visually stunning anywhere.
EASY ASSEMBLY AND INSTALLATION
You can assemble our LED screens in a
comfortable and simple way. They do not
require additional machinery, no complex tools



Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display 1





Front and rear maintenance
Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble and
disassemble easily and quickly.



Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display 2

Front maintenance guide





Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display 3

Hot-swapping technology
Hard connection supports full front access

Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display 4

Quick lock for easy installation
Steel material fast lock system +High precision aluminum
alloy cabinet frame fast installation, but perfect flatness splicing

Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display 5

  P4.16 P5 P6.25 P8.33 P10
SMD type SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Physical density(dots/sqm) 57600 40000 25600 14400 10000
Module resolution 96X72 80X60 64X48 48X36 40X30
Module dimension 400X300 400X300 400X300 400X300 400X300
Module quantity(W×H) 2X3 / 2x4 2X3 / 2x4 2X3 / 2x4 2X3 / 2x4 2X3 / 2x4
Panel resolution(W×H) 192X216 / 192X288 160X180 / 160X240 128X144 / 128X192 96X108 / 96X144 80X90 / 80X120
Panel size(mm) 800x900 / 800X1200 800x900 / 800X1200 800x900 / 800X1200 800x900 / 800X1200 800x900 / 800X1200
Flatness(mm) ≤0.015 ≤0.015 ≤0.015 ≤0.015 ≤0.015
Maintenance mode Front & Rear Front & Rear Front & Rear Front & Rear Front & Rear
Brightness(nits) 6500 6500 6500 6500 6500
Color temperature(K) 3200-9300 optional 3200-9300 optional 3200-9300 optional 3200-9300 optional 3200-9300 optional
Grey scale 65536 65536 65536 65536 65536
Viewing angle(V/H) 160°/ 160° 160°/ 160° 160°/ 160° 160°/ 160° 160°/ 160°
Contrast ratio 5000:01:00 5000:01:00 5000:01:00 5000:01:00 5000:01:00
Frame-changing frequently 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Drive mode Constant current Constant current Constant current Constant current Constant current

1/6 scale 1/6 scale 1/6 scale 1/3 scale 1/2 scale
Refresh rate 3840 3840 3840 3840 3840
Max power consumption(W/m2) 600-800 600-800 600-800 600-800 600-800
Avg. power consumption(W/m2) 100-200 100-200 100-200 100-200 100-200
Electric power requirements AC90-264V AC90-264V AC90-264V AC90-264V AC90-264V

47-63Hz 47-63Hz 47-63Hz 47-63Hz 47-63Hz
