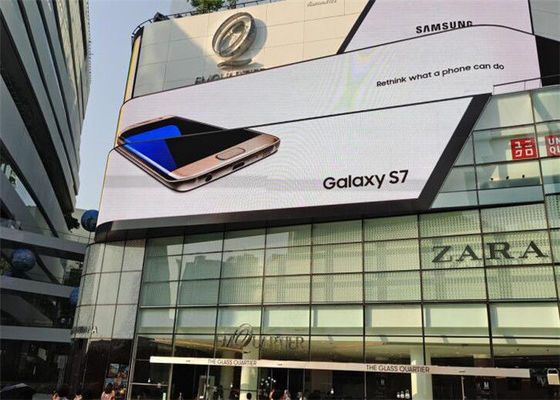

High Brightness P10 Curved LED Screen Screen With Curved Cabinet Design

High Brightness P10 Curved LED Screen Screen With Curved Cabinet Design

  • High Light

    curve led display

    ,

    360 degree led display

  • Module Size
    160*160mm
  • Pixels
    10mm
  • Protection Grade
    IP65
  • Brightness
    >8000nits
  • Viewing Distance
    10-100m
  • Cabinet Size
    960*960mm
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-OCUP1006
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

High Brightness P10 Curved LED Screen Screen With Curved Cabinet Design


High Brightness P10 Curved LED Screen Screen With Curved Cabinet Design



 >> Features



 1. Different Radian Cabinet design according to different radian wall

 2. High Brightness 346 LED Lamp, power supply to low the power consumption

 3. High Brightness (>8000nits), to ensure the display effect for the outdoor advertising

 4. High quality waterproof : Top module ,cabinet design to ensure good waterproof function

 5. High Quality Raw materials to ensure lifespan and working stable



Item parameter
Pixel Pitch PH10mm
Pixel Density 10,000dos/sqm
LED Configuration DIP346
Module Size 160*160mm
Module Resolution 16*16 dots
Cabinet Size 960*960mm
Cabinet Resolution 96*96dot
Brightness >8000nits
Refresh Rate >1920hz
Viewing Distance 10-100m
Power Input AC110V - 220V ±15%, 50HZ
Max Power Consumption 730W/sqm
Ave. Power Consumptio 288W/sqm
Working Temperature -20℃ - +60℃
Lifespan >100,000 Hours
Operating System NOVA, LINSN.ETC
Input Source All Format (AVI, MPEG,VOB, RM, etc)



 >> Description

 1.With the best LED industrial waterproof and ultraviolet-proof DIP346 to make a better surface evenness and stability.
 2. High quality Raw materials to ensure whole led screen lifespan and working stable
 3. Support point correction function, ensure the consistency of the color and the brightness in the process of use.
 4. Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years.
 5. Cabinet Radian can be design according to wall radian
 6.With the protection rating of IP65, face any bad weather.
 7. Complete series, customized to satiny any requirements of customer


 >> Pre-sale service


 1. Reply enquiries in 24 hours.


 2. Market research and forecast for customer.


 3. Provide professional solutions based on customer's requirement.


 4. Offer sample and all document as customers required.


 5. Other services, such as factory visiting and so on.

 >> In-sale service


 1. Tracking report of production.


 2. Quality test report for every order.


 3. Photos and videos as per customer's requirement.
