Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OCUP1006
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
160*160mm |
Pixels: |
10mm |
Protection Grade: |
IP65 |
Brightness: |
>8000nits |
Viewing Distance: |
10-100m |
Cabinet Size: |
960*960mm |
Module Size: |
160*160mm |
Pixels: |
10mm |
Protection Grade: |
IP65 |
Brightness: |
>8000nits |
Viewing Distance: |
10-100m |
Cabinet Size: |
960*960mm |

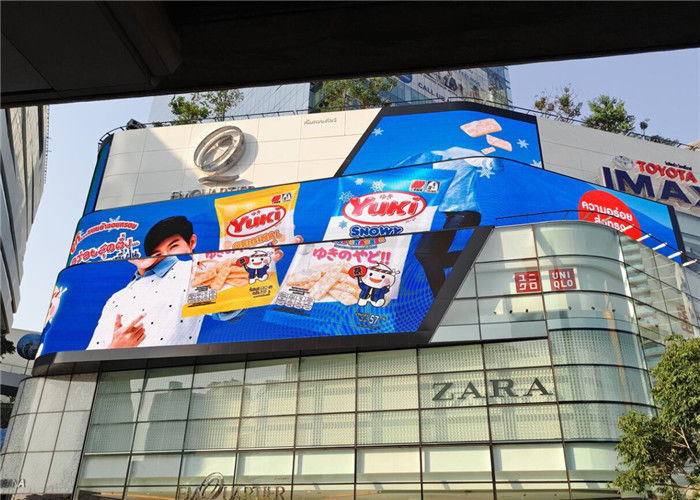

High Brightness P10 Curved LED Screen Screen With Curved Cabinet Design
>> Features
1. Different Radian Cabinet design according to different radian wall
2. High Brightness 346 LED Lamp, power supply to low the power consumption
3. High Brightness (>8000nits), to ensure the display effect for the outdoor advertising
4. High quality waterproof : Top module ,cabinet design to ensure good waterproof function
5. High Quality Raw materials to ensure lifespan and working stable
| Item | parameter |
| Pixel Pitch | PH10mm |
| Pixel Density | 10,000dos/sqm |
| LED Configuration | DIP346 |
| Module Size | 160*160mm |
| Module Resolution | 16*16 dots |
| Cabinet Size | 960*960mm |
| Cabinet Resolution | 96*96dot |
| Brightness | >8000nits |
| Refresh Rate | >1920hz |
| Viewing Distance | 10-100m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 730W/sqm |
| Ave. Power Consumptio | 288W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Lifespan | >100,000 Hours |
| Operating System | NOVA, LINSN.ETC |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description
1.With the best LED industrial waterproof and ultraviolet-proof DIP346 to make a better surface evenness and stability.
2. High quality Raw materials to ensure whole led screen lifespan and working stable
3. Support point correction function, ensure the consistency of the color and the brightness in the process of use.
4. Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years.
5. Cabinet Radian can be design according to wall radian
6.With the protection rating of IP65, face any bad weather.
7. Complete series, customized to satiny any requirements of customer
