Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OCUP1600
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Pixels: |
16mm |
Display Function: |
Video |
Brightness: |
>8000 Cd/m2 |
Module Size: |
256mm X 256mm |
Related Humidity: |
10%~95% |
Tube Chip Color: |
Full Color |
Pixels: |
16mm |
Display Function: |
Video |
Brightness: |
>8000 Cd/m2 |
Module Size: |
256mm X 256mm |
Related Humidity: |
10%~95% |

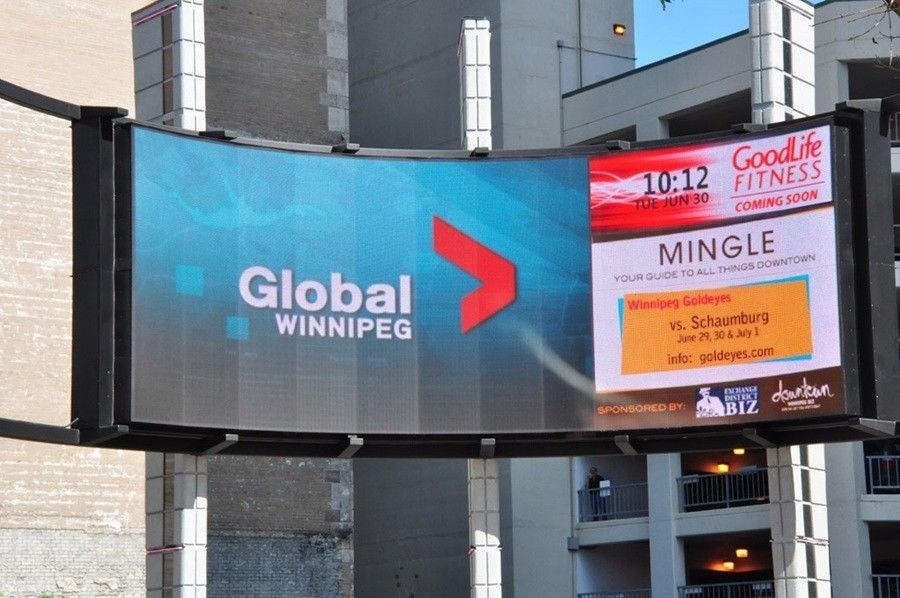

P16 LED Curved Display Small Flexible LED Screen Bluetooth WIFI Lined Centralized Control
The led flexible screen of LED Solution use state-of-art DIP LEDs, which has the brightness 6000 to 8000nit. The LED display has the advantage of excellent flatness, super uniform color, brightness and long viewing distance.
>> Description
1. P3/P4/ P5/ P6/ P7.62/ P8/ P10/ P12/ P16 and P20 LED Modules are available.
2. Single color, Bi-color and Full color modules available.
3. Waterproof IP65 rating, guaranteeing our product's stable broadcasting in harshest weather condition.
4. Strict system control and pixel to pixel correction make the image smooth and uniformity.
5. Able to show a variety of content of video, animation, graphic and so on.
6. Modular design makes module individual and can fix easily without affecting others.
7. LAMP’s outdoor advertising LED display product ranges from pixel 10mm to pixel 62.5mm, IP65 rating outdoor display products that deliver high-resolution full color images with unequalled brightness and contrast levels.
8. The product ranges offer a modular outdoor display concept that allows the build-up of almost any shape and size display that is ideal for use at outdoor locations with large viewing distances.
p16 led display Module
| Technical Specification | |
| Pixel pitch | 16mm |
| Pixel configuration | 1R1G1B |
| Pixel resolution | 3906 dot/m2 |
| Cabinet size | 768mm x768mm |
| Cabinet resolution | 60 x60 |
| Module size | 256mm x 256mm |
| Weight (KG/cabinet) | 26kg |
| Max Power | <700 W/m2 |
| Ave Power | 350 W/m2 |
| Brightness | >8000 cd/m2 |
| Grey color | 16.7M |
| Refresh frequency | >3000HZ |
| Frame rate | >60HZ |
| The best viewing distance | 5-50m |
| Viewing angle | H100°/ V50° |
| Operation temperature | -40°C-55°C |
| Related humidity | 10%~95% |
| Drive method | static constant current |
| Brightness adjustment | 0~100% stepless |
| Scotoma rate | <0.0001 |
| MTTF | >5000H |
| Lifespan | 100000H |
| Computer operation system | Win98/Win XP/Win 2000 |
| Visual signal | RF, S-Video,RGB,RGBHV,YUV,YC,etc. |
| Control method | to be synchronized with computer |
| Ingress protection |
IP65
|
>> Features
* Weatherproof to IP65 standards;
* High resolution images and long lifetime;
* Easily configured for various size and aspect ratios;
* Wide viewing angle and long viewing distance;
* Brightness from 6000 nits onwards;
