200W/M2 SMD2121 P2.604 Indoor Full Color LED Display

200W/M2 SMD2121 P2.604 Indoor Full Color LED Display

  • High Light

    P2.604 Indoor Full Color LED Display


    200W/M2 Indoor Full Color LED Display


    SMD2121 High Brightness LED Display

  • Product Name
    Indoor Rental LED Display
  • Pixel Pitch
  • Average Power Consumption
  • Grayscale
  • Lifespan
    100000hrs At 50%brightness
  • Service
  • Place of Origin
  • Brand Name
  • Certification
  • Minimum Order Quantity
  • Price
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability

200W/M2 SMD2121 P2.604 Indoor Full Color LED Display

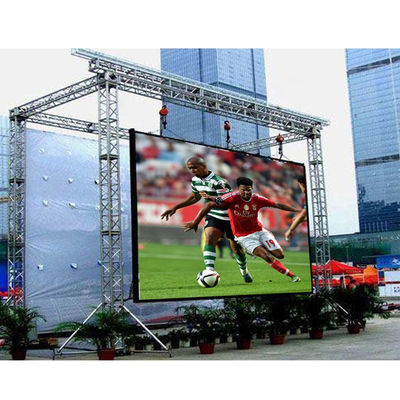

Ultrathin High Brightness P2.604 Indoor Rental LED Display For Public Events Small Pixel Pitch


Our core advantage:

1.Adjustable side lock,easy installation.
2.The aluminum structure is in better heat dissipation,operate noiseless;
3.Approved by RoHS certification, Lead-free, enviromental design;
4.Combined with the brightness auto-adjusting technology and PFC power supply,low current can save energy by over 35%;

5.High refresh rate and high definition give your the better view effect.

6.The best after-sale service.


P2.604 Indoor Full color LED Display Specification


Product Name Specification
Pixel Pitch 2.604mm
Pixel Configuration 1R1G1B/SMD2121 Black lamp
Density 147,456 pixel/m2
Moduel Size(L×W)mm 250mm×250mm
Cabinet Size(L×W×H)mm 500mm×500mm×90mm
Module Resolution 96×96
Cabinet Resolution 192×192
Driving Method 1/24 Scan
Driving IC FM6353
Brightness 800CD/
Contrast 1000:01:00
Brightness Adjustment Auto and Manual
Power Consumption Max Power:<600W
Average power: <300W
Cabinet Weight 7.5kg
Color Temperature 2000K—9500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 16bit
Grey Processing 1024×1024×1024
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >3840Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65
Storage : -40 - 85
Environment Temperature -30 to 60; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V/5V60Hz
Protection Level IP 45




Q1: What about the delivery time?

A1: Normally 7days if we have in stock,otherwise need 15-30days to production according to your size.

Q2: Whats your payment term? How long it takes to delivery?

A2: T/T accepted, 30% deposit TT in advance, and the balance 70% to transfer before delivery;

Q3: Did it can play HD video?

A3: Yes, it can realize HD video function with related controlling system.

Q4: How to become our distributor?

A4: To be our distributor, We can share our profit together with you according to the actual order sales, also we will charging led screen after-service together.

Q5: How can you ensure the led display product quality?

A5: Quality and service is our core advantage, We have 5 strict process to make quality control.If any quality failures occur within warranty time, we will handle it quickly for free and offer the technical support;

Q6: What's the shiping method?

A6: It depends on you.All ok to by sea,by air or express.
