Product Details
Place of Origin: China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Product Name: |
P5 Indoor Fixed Led Display |
Cabinet Size: |
320mmX160mm |
Power Supply: |
Chuanglian 110~220V |
LED Lamp: |
SMD2121 |
Lifespan: |
100000hrs At 50%brightness |
Service: |
Back |
Product Name: |
P5 Indoor Fixed Led Display |
Cabinet Size: |
320mmX160mm |
Power Supply: |
Chuanglian 110~220V |
LED Lamp: |
SMD2121 |
Lifespan: |
100000hrs At 50%brightness |
Service: |
Back |

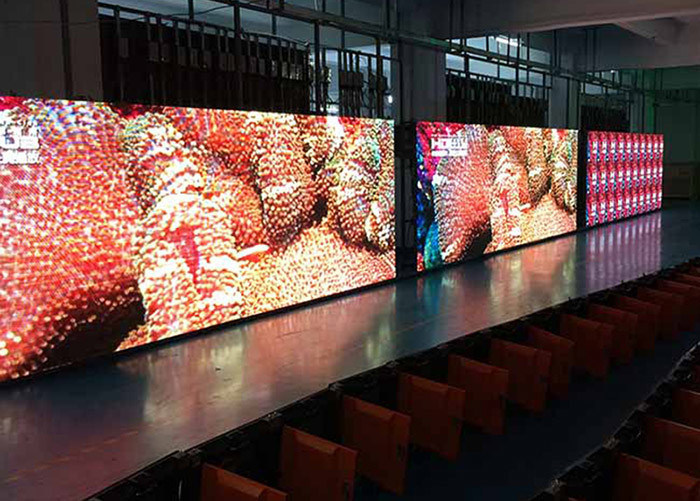

Rental Cabinet 640mmx640mm P5 Indoor Full Color LED Screen
Product Features
1) Flexible and Quick installation : the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to
lock the two cabinet , 10s to complete a cabinet installation , high mouting accuracy.
Enclosure and wiring connection fast and reliable , that is beautiful in appearance but also
to achieve a real sense of the rapid disassembly .
2) High Brightness : LED encapsulation confirm the high brightness even under strong sunlight , and brightness can be
adjusted automatically according to different suroundings .
3) Light weight : Per square box weights only 24kg , single box weight 8kg , person can be a single hand
saving installaion time .
4) Long viewing distance , High definition , Good uniformity.
5) Thin box : Box with die casting aluminum , high strength , toughness , high precision.
P5 Indoor RGB SMD LED Display parameter
| LED Module | ||
|
|
pixel pitch | 5mm |
| module size | 320*160mm | |
| module resolution | 64*32dots | |
| LED | SMD2121 | |
| Scan | 1/16Scan | |
| Application | Indoor | |
| LED chip | Epistar | |
| LED Cabinet | ||
| Cabinet Size | 960*960mm | |
| Cabinet resolution | 192*192dots | |
| module quantity | 3*6pcs | |
| LED power supply | G-energy/Youyi/Chuanglian/Meanwell | |
| Material | Iron | |
| Receiving card | 1pcs | |
| LED Screen | ||||
|
|
Pixel density | 40000dots/㎡ | Continuous Working Hours | >72 hours |
| Ave power consumption | 250W/㎡ | Using Life | 100,000 hours | |
| Max power consumption | 800W/㎡ | MTBF | >10,000H | |
| Optimum Viewing Distance(m) | ≥5m | Scatter OOC Point | <0.01% | |
| Brightness(cd/m2) | ≥1200cd | Continuous OOC Point | None | |
| Refresh Rate | 1920Hz frame/s | IP Grade | IP40/IP30 | |
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | |
| Display color | 1M——69G | Working Humidity | 10---60% | |
Regular packing
Carton packing , wooden case packing , fright case packing according to customer's needs .
Application
Corporate Events, Nightclubs,Houses of workshop,Digital signage ,Social event ,Music bar
